This item is Discontinued.

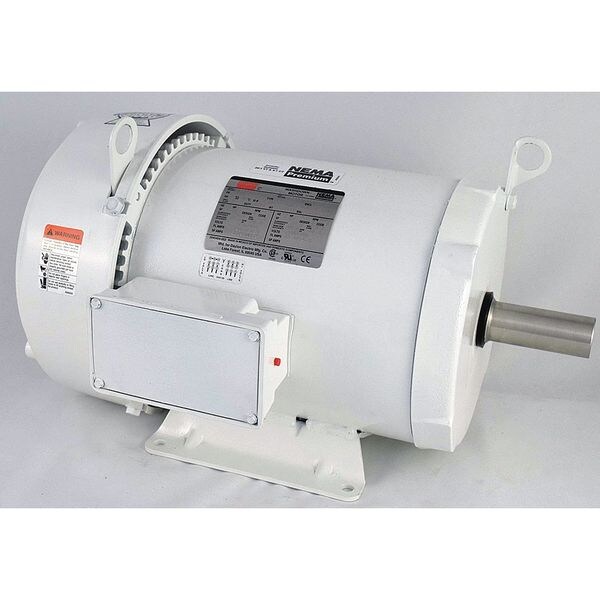

Dayton Washdown Motor, 10 hp, 1760 RPM, 215T 5XAV3

This item is Discontinued.

Dayton

Washdown Motor, 10 hp, 1760 RPM, 215T (Discontinued)

Mfr # 5XAV3
Zoro # G1357081
UPC # 190735355657
Country of Origin Mexico
Category DC Washdown Motors
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5XAV3
Zoro #
G1357081
UPC #
190735355657
Country of Origin
Mexico
Item
Washdown Motor
Motor Design
Three-Phase
Phase
Three
HP
10 hp
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
215T
Motor Frame Material
Steel
Motor Thermal Protection
None
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Service Factor
1.15
Application
High Humidity, Wet Environments and Areas Where Motor is Occasionally Exposed to High Pressure Washdowns
Hz
60/50 Hz
Drain Plugs
(2) in Conduit Box, (4) Each End
Ins. Class
F
Full Load Amps
24.0/12.0 A
Includes
Side-Mounted Conduit Box
Inverter Rated
Inverter Rated
Nominal Efficiency
91.7 %
Motor Mounting Position
Horizontal
Endshields
Cast Aluminum
Max. Ambient Temp.
40 Degrees C
Motor Mounting Type
Rigid Base
Duty
Continuous
Motor Bearings
Ball
Conduit Box
Cast Aluminum with Buna N Gasketed Cover
Standards
CSA Certified (258525), UL Recognized (E47479), USDA Approved
Motor Shaft Rotation
CW/CCW
Motor Shaft Design
Keyed
Footnotes
8, 11
CC Number
CC030A
Nameplate RPM
1,760 RPM
Shaft Material
303
Frame Material
Epoxy Coated
Motor Application
General Purpose
NEMA Design
B
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Duty Cycle
Continuous
Endshield Material
Aluminum
Finish
Epoxy-Coated

Description

Washdown Motor, Three Phase, Motor Design Three-Phase, 10 hp HP, Nameplate RPM 1,760 RPM, Voltage 230/460V AC, Full Load Amps 24.0/12.0 A, 215T Frame, 60/50 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, NEMA Design B, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Motor Frame Material Steel
