Magnetic Drill Kit, 20V, 810 RPM, Brushless (Discontinued)

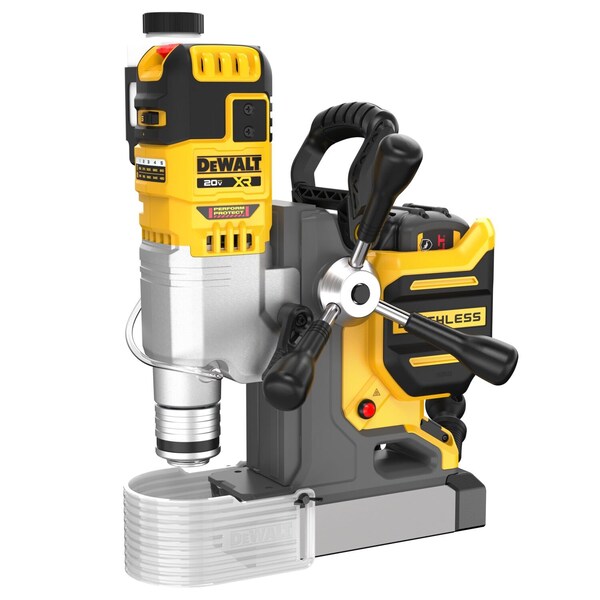

The DEWALT DCD1623GX2 Magnetic Drill Kit is a cordless, 20V brushless magnetic drill press for use in metal drilling applications. With two mechanical gears and ten total speed settings, this tool offers flexibility for various drilling tasks. The kit includes two 20V/60V MAX* FLEXVOLT® oil-resistant 9Ah batteries, a charger, and a durable carrying case to support jobsite portability.

Key Features of the DEWALT DCD1623GX2 Magnetic Drill Kit:

• Drilling capacity: Rated for holes up to 2 inches diameter through 2-inch thick structural steel (per manufacturer specifications).


• E-CLUTCH® Technology: Turns off when rotation is detected (per manufacturer design), intended to assist with operational control.


• FLEXVOLT ADVANTAGETM: Provides increased power output when used with compatible FLEXVOLT® batteries (up to 32% per manufacturer data).


• Variable Speed Control: Offers five variable speeds per gear for a total of ten speed settings (up to 810 RPM).


• Permanently Magnetized Base: Magnetized base attaches to steel surfaces; does not require external electrical charge for magnetization.


• Quick Change Chuck System: Allows tool-free switching between compatible bit types (3/4 inch Weldon shank and 1/2 inch keyed chuck).


• Motor Height Adjustment: Adjustable motor height allows use with various accessories within specified ranges.


• Forward/Reverse Control: Supports multiple operational modes including tapping, enabling additional functions such as tapping operations.


• On-board LED Light: Provides illumination of the work area during operation.


• Batteries & Charger Included: Comes with two oil-resistant FLEXVOLT® batteries and charger for extended runtime—drill up to 40 holes per charge under specified conditions.
