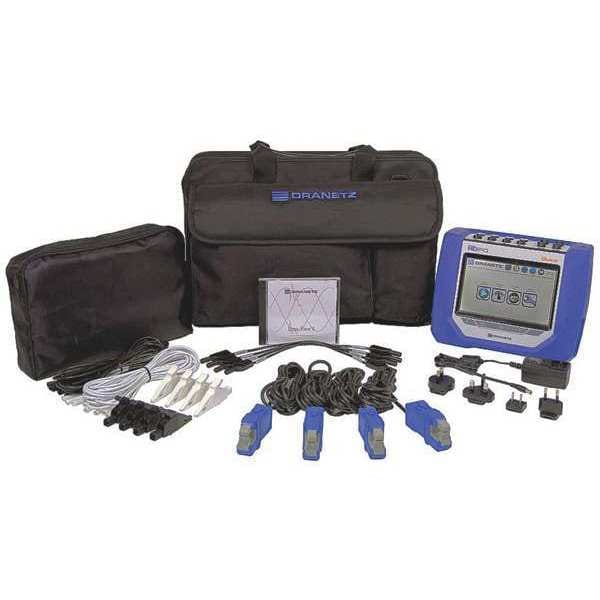

Dranetz Power Qlty Anlz Kit, 10A, HDPQ Guide HDPQ-P-GA10PKG - main

Power Qlty Anlz Kit, 10A, HDPQ Guide

  • Mfr # HDPQ-P-GA10PKG

  • Zoro # G8579383

product price:  $9,679.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4
Includes
(4) TR2510B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
1 to 10 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HDPQ-P-GA10PKG
Zoro #
G8579383
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
(4) TR2510B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
1 to 10 A
Display
Color LCD Touch Screen
Current Channels
4
Data Logging
Yes
Min. Transient Duration
32 mS
Safety Rating
CAT III 1000V, CAT IV 600V
Max. AC Amps
10 A
Voltage Channels
4
Max. DC Voltage
1,000V
Max. VA
100 TVA
Calibration Certificate
NIST
Current Accuracy
+/-0.1%
Harmonic Capture Range
127/63
Max. AC Voltage
1,000
Power Factor
0 to 1
AC Response
TRMS
Peak Capture
Yes
Calibration Frequency
45 to 65 Hz
Voltage Accuracy
+/-0.1%
Crest Factor
I=3, V=2
Storage
4 GB
Display Resolution
800 x 480
Communication Protocol
Ethernet, Optional Bluetooth via USB Adapter, USB, VNC Remote Control, Wi-Fi
IP Rating
IP65
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
122 Degrees F
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
Data Output Type
Ethernet, Bluetooth, USB, Wi-Fi
Power Source
AC Adapter, Battery
Calibration Certificate Included
NIST Not Traceable
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Maximum AC Current Measured
10 A

Description

Power Quality Analyzer Kit, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate NIST, Current Channels 4, Includes (4) TR2510B CT's, AC Power Supply, Dran-View Ent, Dranetz HDPQ Guide, Soft Carry Case, Voltage Cable Set, Maximum AC Current Measured 10 A, Maximum DC Current Measured Not Applicable, Peak Capture Yes, Power Factor 0 to 1, Testing Functions Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage, Voltage Channels 4
