Dranetz Power Qlty Anlz Kit, 300A, HDPQ Xplorer HDPQ-P-XAMFLEX3PKG - main

Power Qlty Anlz Kit, 300A, HDPQ Xplorer

  • Mfr # HDPQ-P-XAMFLEX3PKG

  • Zoro # G8579514

product price:  $15,083.99
/ea
Free Shipping & Returns

Key Features

Sampling Rate
512 sec/cycle
Phase
4
Includes

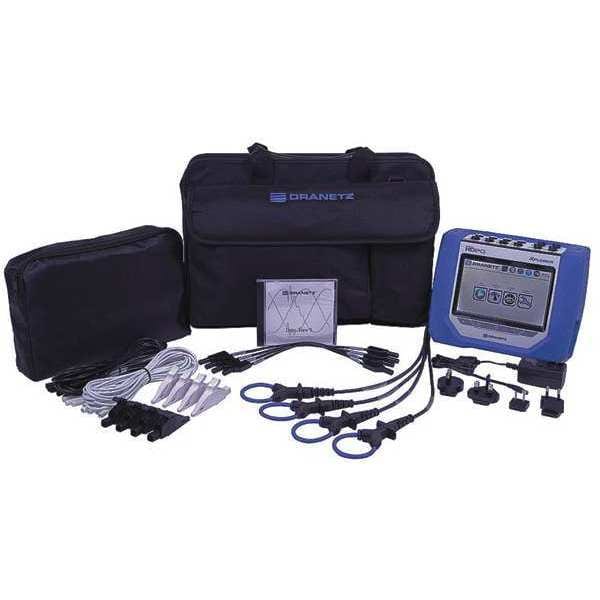

(4) DRANFLEX300MHB6 FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
3 to 300 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HDPQ-P-XAMFLEX3PKG
Zoro #
G8579514
UPC #
-
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
3 yr

Details

Item
Power Quality Analyzer Kit
Sampling Rate
512 sec/cycle
Phase
4
Includes
(4) DRANFLEX300MHB6 FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set
Max. Watts
100 TW
Kit Current Capability
3 to 300 A
Display
Color LCD Touch Screen
Min. Transient Duration
32 mS
Display Resolution
800 x 480
Safety Rating
CAT III 1000V, CAT IV 600V
Voltage Accuracy
+/-0.1%
Max. VA
100 TVA
Max. AC Amps
300 A
Max. AC Voltage
1,000
Calibration Certificate
NIST
Current Accuracy
+/-0.1%
Current Channels
4
Power Factor
0 to 1
Peak Capture
Yes
Storage
4 GB
AC Response
TRMS
Max. DC Voltage
1,000V
Calibration Frequency
45 to 65 Hz
Harmonic Capture Range
63rd
Voltage Channels
4
Data Logging
Yes
Crest Factor
I=3, V=2
Communication Protocol
Ethernet, Optional Bluetooth, USB, VNC Remote Control, Wi-Fi
IP Rating
IP65
Maximum Operating Temperature
122 Degrees F
Minimum Operating Temperature
32 Degrees F
CAT Safety Rating
CAT III 1000V, CAT IV 600V
Maximum AC Current Measured
300 A
Calibration Certificate Included
NIST Not Traceable
Power Source
AC Adapter, Battery
Testing Functions
Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
Data Output Type
Ethernet, Bluetooth, USB, Wi-Fi

Description

Power Quality Analyzer Kit, CAT Safety Rating CAT III 1000V, CAT IV 600V, Calibration Certificate NIST, Current Channels 4, Includes (4) DRANFLEX300MHB6 FLEX CT, AC Power Supply, Dran-View Ent, Dranetz HDPQ Xplorer, Soft Carry Case, Voltage Cable Set, Maximum AC Current Measured 300 A, Maximum DC Current Measured Not Applicable, Peak Capture Yes, Power Factor 0 to 1, Testing Functions Active Energy, Apparent Power, Current, Demand, Energy, Power, Power Factor, Reactive Power, Voltage
