Compact Electric Water Immersion Vac System, Division 1

Dynabrade Compact Electric Water Immersion Vac System,  Division 1 61495
Hover or click to zoom Tap to zoom
$10,534.33
  • Country of Origin (subject to change): Canada
See full product details
This item ships free.

Total: $10,534.33

Dynabrade #61495 Specifications

  • Country of Origin (subject to change): Canada

Description

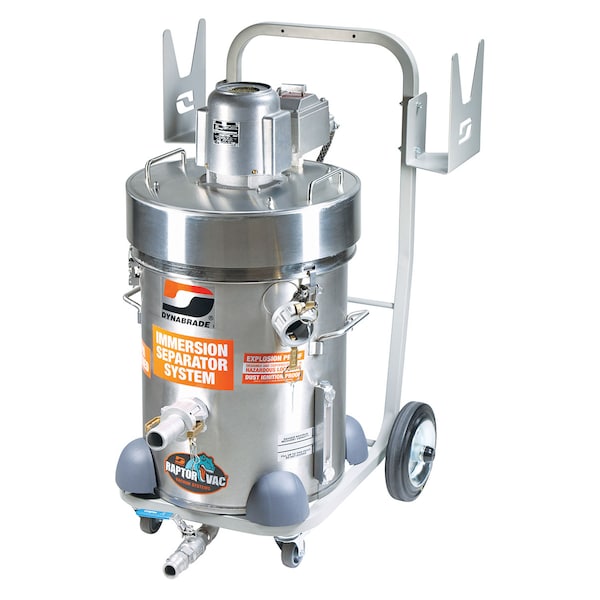

Compact Electric Water Immersion Vac System, Division 1 • Electric Portable Vacuum with Division 1 Immersion for safe recovery of metallic dusts such as aluminum, magnesium, titanium, commercial alloys. Collects maximum of 3 lbs. (1.36 kg) of dust. Legally certified as explosion-proof and dust ignition-proof. Utilized for the recovery of metallic, conductive and explosive dusts, into a liquid immersion bath such as water, paraffin oil or mineral oil. Renders hazardous dusts inert. Recovery capacity of 3 lbs (1.36 kg) of dust into 7.5 gallons (28.40 liters) of neutralizing liquid. Includes HEPA H14 Filter with 99.995% efficiency on 0.3 micron. Filter is located downstream of the motor. • Stainless steel recovery tank (SAE 304). Easy one-click detaching and connecting of tank. Unit is static-dissipating and conductive. Aerosol leak tested for quality assurance. Equipped with easy-glide casters. Single operator connection. Dynabrade recommends the use of mineral oil with viscosity of 10.5 cSt. • Designed For Use In: Class I, Division I, Group D T3C Class II, Division I, Groups E, F and G Hazardous Locations as defined in the National Electric Code (NFPA 70) • European Certifications: ATEX, Third Party Certified CE EX II 2 GD Ex d IIA T3 Gb Ex t IIIC T 200° C Db IP 6x • Vacuum for use in: Group D: atmospheres, containing flammable gas, flammable liquid-produced vapor, or combustible liquid-produced vapor mixed with air that may burn or explode Group E: atmospheres, containing potentially combustible dusts, including aluminum, magnesium, and their commercial alloys Group F: atmospheres, containing combustible carbonaceous dusts, such as coal, carbon black, charcoal, coke dust Group G: atmospheres, containing wood and plastic dusts Included: • One 20' (6 m) Conductive Coaxial Hoses with Integrated Air Lines o One composite coupler o One vacuum hose swivel o Conductive recovery bag o HEPA H14 Filter with 99.995% efficiency on0.3 micron
