  15. Lmt Swtch Head, Psh Rllr Plngr, Top, .35 In

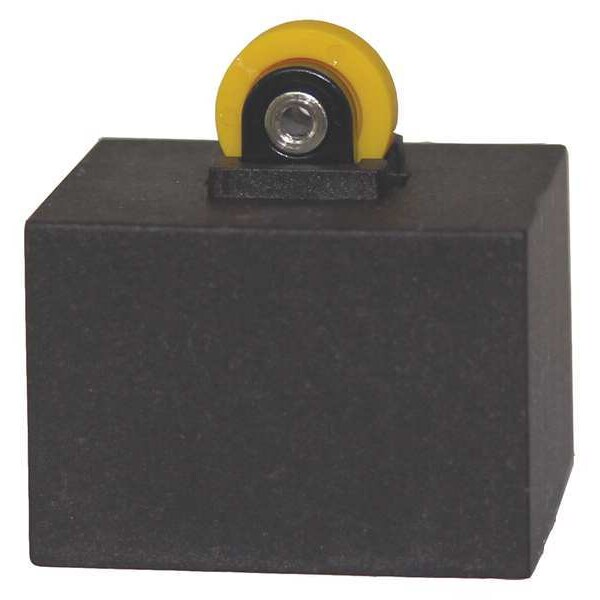

Eaton Lmt Swtch Head, Psh Rllr Plngr, Top, .35 In LS-XP - main

Lmt Swtch Head, Psh Rllr Plngr, Top, .35 In

  • Mfr # LS-XP

  • Zoro # G2359966

product price: $9.29
/ea
Sold in multiples of 2 for $18.58

Key Features

Actuator Style
Push Roller Plunger
Actuator Location
Top
Actuator Length
0.35 in
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LS-XP
Zoro #
G2359966
UPC #
786685393568
Country of Origin
Germany

Dimensions

Actuator Length
0.35 in
Roller Width
0.1 in
Product Height
1.01 in
Product Length/Depth
.94 in
Product Width
.98 in
Overall Width
0.98 in
Overall Height
1.01 in
Arm Length - Maximum
0.35 in
Manufacturer Warranty Length
1 yr
Roller Diameter
0.35 in
Overall Depth
0.94 in

Details

Item
Limit Switch Head
Actuator Style
Push Roller Plunger
Actuator Location
Top
For Use With
LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
NEMA Rating
1, 12, 13, 2, 4, 4X, 6
Movement
Vertical
Description/Special Features
Momentary
Operating Temp.
-13 Degrees to 158 Degrees F
Amps
10
Standards
RoHS, UL Listed
Travel
Operating Travel 0.22 in, Total Travel 0.24 in
IP Rating
IP66, IP67
Voltage Rating
415V AC
Operating Force
8 N
Roller Material
Nylon
Differential Travel
0.24 in
Certifications
UL Listed
Environmental rating
IP66, IP67
Operating temperature - max
158°F
Switch type
Top push roller
Operating temperature - min
-13°F
Type
LS-Titan
Product Name
Eaton LS-Titan miniature DIN limit switch
Roller Position
Top
Includes Actuator
Actuator Included
Compatible with Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Series
LS
Reset Travel
0.12 in
Directional Movement
Linear
Operating Temperature - Maximum
158 Degrees F
Compatible with Brand
Eaton
Operating Torque
8.88 in-lb
Operating Temperature - Minimum
-13 Degrees F
Pretravel
0.002 in
Compatible with Series
LS-Titan
Plunger Adjustability
Fixed
Overtravel
0.22 in
Roller Adjustability
Fixed
Action
Momentary
Total Travel
0.24 in
NEMA Enclosure Rating
1, 12, 13, 2, 4, 4X, 6
Compatible Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Manufacturer Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Manufacturer Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible with Mfr. Model No.
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use with Mfr Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
For Use With Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Pump Manufacturer Part Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A
Compatible Mfr. Model Number
LS-S02, LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A

Description

Limit Switch Head, Actuator Style Push Roller Plunger, Actuator Location Top, Actuator Length 0.35 in, Contact Form Not Applicable, Amps 10, Voltage Rating 415V AC, Travel Operating Travel 0.22 in, Total Travel 0.24 in, Movement Vertical, Operating Force 8 N, Operating Temp. -13 Degrees to 158 Degrees F, NEMA Rating 1, 12, 13, 2, 4, 4X, 6, IP Rating IP66, IP67, Standards RoHS, UL Listed, For Use With LS-S11S, LS-S20A, LSE-02, LSE-11, LSE-AI, LSE-AU, LSM-02, LSM-11S, LSM-20A, Mfr. No. LS-S02
