This item is Discontinued.

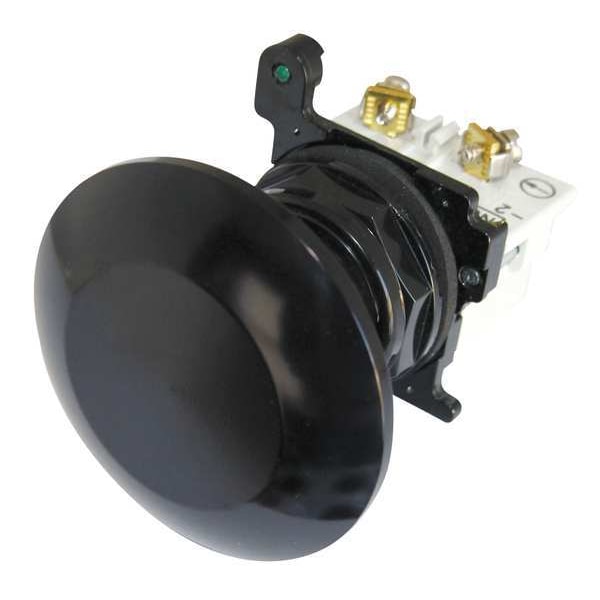

Eaton Non-Illuminated Push Button, 30mm, Epoxy E34JB1-1X

Non-Illuminated Push Button, 30mm, Epoxy (Discontinued)

  • Mfr # E34JB1-1X
  • Zoro # G5228641
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E34JB1-1X
Zoro #
G5228641
UPC #
786680126796
Country of Origin
United States

Dimensions

Size
30 mm
Overall Height
1.78 in
Overall Depth
1.75 in
Mushroom Head Diameter
65 mm
Manufacturer Warranty Length
1 yr
Panel Cutout Diameter
30 mm

Details

Item
Mushroom Head Push Button
Material
metal
Color
Black
Action
Momentary
Legend
No Legend
Type of Operator
65mm Mushroom Head
Features
Passed a 600 Hour Salt Spray Test
Terminal Connection
Screw Clamp
Basic Material
Metal
Contact Form
1NO/1NC
Number of Operators
1
NEMA Rating
12, 13, 3, 3R, 4, 4X
Bezel
Epoxy Coated Metal Zinc Die Cast
IP Rating
IP65
Head Material
Epoxy Coated Metal
Contact Rating
10A @ 600V AC
Standards
CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, FDA, UL 508, UL 131568
Product Type
Push Button Operators
Bezel Material
Epoxy Coated Zinc Die Cast
Operating Temperature - Minimum
1 Degrees F
Push Button Style
Mushroom Head
Operator Material
Metal
DC Contact Rating
5 A @ 250 V
Resistance Properties
Chemical Resistant, Corrosion Resistant, Oil and Grease Resistant, Watertight
Series
E34
Number of Indicator Lights
0
Operator Illumination
Non-Illuminated
AC Contact Rating
10 A @ 600 V
Operating Temperature - Maximum
150 Degrees F
Operator Voltage Rating - Maximum
120 V AC/DC
Head Color
Black
Mechanical Operating Durability
1.00 x 10^7
NEMA Enclosure Rating
12, 13, 3, 3R, 4, 4X

Description

Mushroom Head Push Button, 30 mm, Momentary Action, 65mm Mushroom Head Type of Operator, Head Material Epoxy Coated Metal, Contact Form 1NO/1NC, Bezel Epoxy Coated Metal Zinc Die Cast, Color Black, Contact Rating 10A @ 600V AC, Number of Operators 1, NEMA Rating 12, 13, 3, 3R, 4, 4X, IP Rating IP65, Legend No Legend, Standards CE EN 60947-5-1, CE EN 60947-5-5, CSA C22.2 No.14, CSA LR68551, FDA, UL 508, UL 131568, Terminal Connection Screw Clamp, Features Passed a 600 Hour Salt Spray Test
