  6. Warning Light, Clear, Strobe Tube, 120V AC, 65 FPM, 4 1/2 in Dia., Surface

This item is Discontinued.

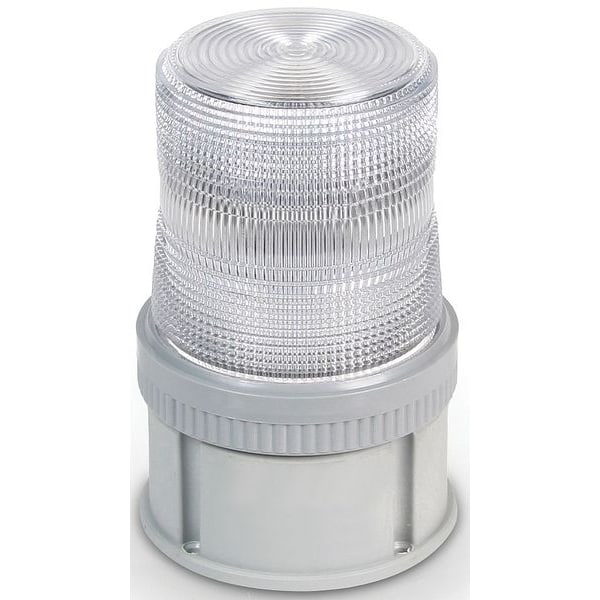

Edwards Signaling Warning Light, Clear, Strobe Tube, 120V AC, 65 FPM, 4 1/2 in Dia., Surface 105HISTC-N5

Warning Light, Clear, Strobe Tube, 120V AC, 65 FPM, 4 1/2 in Dia., Surface (Discontinued)

  • Mfr # 105HISTC-N5
  • Zoro # G5525904
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
105HISTC-N5
Zoro #
G5525904
UPC #
782640267271
Country of Origin
United States

Dimensions

Height
6 3/4 in
Overall Diameter
4 1/2 in
Diameter
4 1/2 in
Overall Depth
6 3/4 in

Details

Item
Warning Light
Color
Clear
Lamp Type
Strobe Tube
Power Source
Wire
Lamp Life
3,000 hr
Lens Material
Polycarbonate
Flashes per Minute
65
Housing Material
Glass Reinforced Thermoplastic Polyester Resin
Standards
cULus
Features
Corrosion Resistant, Shatter Resistant
Voltage
120V AC
Current Drawn
0.1A AC
Rating
UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III
Mounting
Surface
Lens Design
Fresnel
Product Type
Strobe Light
NEMA Rating
NEMA 4X
Connection Type
Wire Leads
Lens Color
Clear
Includes Mounting Hardware
No Mounting Hardware
Operating Current
0.100 A
For Hazardous Location
Class I, Division 1, Class II, Division 2
IO-Link Compatibility
Not IO-Link Compatible
Light Intensity
800,000 cd
Control Protocol
Direct Wire
Mounting Mechanism
Bracket
Lifespan
3,000 hr
Brightness Selection
Fixed Brightness
For Location
Indoor, Outdoor
Light Operating Mode
Strobe
Mounting Style
Surface Mount
Light Source
Xenon
Operating Temperature - Maximum
572 Degrees F
Operating Voltage
120V AC

Description

Warning Light, Color Clear, Lamp Type Strobe Tube, Flashes per Minute 65, Lamp Life 3,000 hr, Lens Design Fresnel, Lens Material Polycarbonate, Housing Material Glass Reinforced Thermoplastic Polyester Resin, Mounting Surface, Rating UL Class 1 Div 2, Groups A,B,C, D, Class II Div 2, Groups F, G, Class III, Power Source Wire, Current Drawn 0.1A AC, Height 6 3/4 in
