  13. Lifting Magnet, 2500 lb. Cap, 12-1/2" L
Shop All Below the Hook Lifting Magnets
Eriez

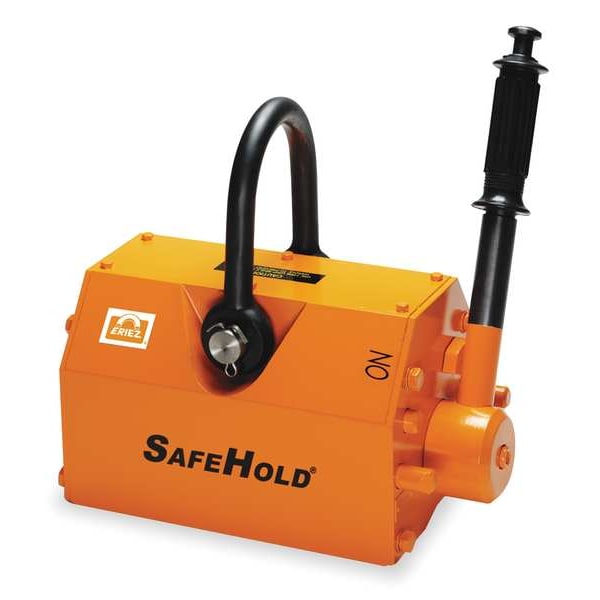

Lifting Magnet, 2500 lb. Cap, 12-1/2" L

product price: $2,356.99
/ea
Item requires special delivery charges. A $100.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Max. Rated Flat Capacity 2,500 lb
  • Overall Height 11 1/2 in
  • Magnet Activation Locking On/Off Handle
  • Overall Length 12 1/2 in
  • Magnet Length 10 5/8 in
See all product information

Product Information

Dimensions

Overall Height 11 1/2 in
Overall Length 12 1/2 in
Magnet Length 10 5/8 in
Magnet Width 7 in
Bail Opening Height 5 1/8 in
Overall Width 7 in
Magnet Height 11 1/2 in
Handle Length 2 in
Bail Opening Width 3 13/16 in
Bail Inside Length 3 7/8 in
Bail Inside Width 3 7/8 in

Details

Item Lifting Magnet
Max. Rated Flat Capacity 2,500 lb
Magnet Activation Locking On/Off Handle
Min. Material Thickness for Activation 1/4 in
Standards ASME B30.20
Features Lifts, Moves, and Positions Round or Flat Materials
Magnet Material Ceramic
Max. Heat Resistant Temp. 175 Degrees F
Max. Rated Round Capacity 1,250 lb
Required Material Thickness for Max Rated Capacity 2 in
Max. Rated Capacity @ Min. Activation Thickness 220 lb
Maximum Load Capacity 2,500 lb
Maximum Operating Temperature 175 Degrees F
Minimum Thickness for Activation 1/4 in
Maximum Flat Load Capacity 2,500 lb
Bail Thickness 5/8 in
Maximum Round Load Capacity 1,250 lb
Activation Mechanism Pull Lever
Minimum Operating Temperature 0 Degrees F
Minimum Thickness for Maximum Load Capacity 1 3/4 in
Number of Poles 2

Description

Lifting Magnet, Maximum Flat Load Capacity 2,500 lb, Maximum Round Load Capacity 1,250 lb, Minimum Thickness for Activation 1/4 in, Minimum Thickness for Maximum Load Capacity 1 3/4 in, Activation Mechanism Pull Lever, Magnet Length 10 5/8 in, Magnet Width 7 in, Magnet Height 11 1/2 in, Overall Length 12 1/2 in, Overall Width 7 in, Overall Height 11 1/2 in, Bail Inside Width 3 7/8 in, Bail Inside Length 3 7/8 in, Handle Length 2 in, Minimum Operating Temperature 0 Degrees F

Restrictions

  • Hazardous material
