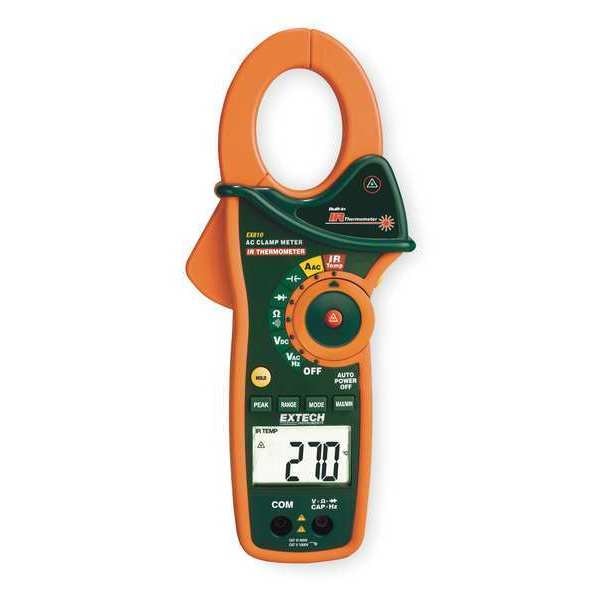

Digital Clamp Meter, LCD, 1,000 A, 1.8 in (46 mm) Jaw Capacity, CAT III 600V Safety Rating (Discontinued)

Name: Digital Clamp Meter, LCD, 1,000 A, 1.8 in (46 mm) Jaw Capacity, CAT III 600V Safety Rating
Brand: Extech
SKU: G8079626
Price: 260.99 USD
Availability: Discontinued

Mfr # EX810-NISTL

Zoro # G8079626

UPC # 793950398111

Country of Origin China

Category Clamp On Power Meters

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: EX810-NISTL
Zoro #: G8079626
UPC #: 793950398111
Country of Origin: China

Dimensions

Manufacturers Warranty Length: 2 yr
Max. Conductor Size: 750 kcmil or (2) 500 kcmil
Maximum Conductor Size: 500MCM; 750MCM
Overall Width: 4.3 in
Battery Size: 9V
Overall Height: 2 in

Details

Item: Digital Clamp Meter
Digital/Analog: Digital
Max. AC Amps: 1,000
Clamp Meter Jaw Style: Clamp On
Max. DC Volts: 600 V
Max. Ohms: 40 megaohm
Jaw Capacity: 1.8 in (46 mm)
Temp. Range: -58 Degrees to 518 Degrees F
Safety Rating: CAT III 600V
Display: LCD
Jaw Opening: 1.7 in
Max. AC Volts: 600 V
Calibration Frequency: 50 to 60 Hz
Includes: Carrying Case, Test Leads
Special Features: 4000 count backlit display, Autoranging with manual range button, Features include Data Hold and Min/Max, Auto Power off, Non-contact InfraRed Temperature measurements with laser pointer, Peak hold captures inrush currents and Transients
Auto Power Off: Yes
Thermometer Type: Infrared
Peak Hold: Yes
Calibration Certificate: Included
Auto Ranging: Yes
Counts: 4,000
AC Current Accuracy: +/-2.8%
Capacitance: 40 mF
Frequency Counter: 0.001 kHz to 4 kHz
Battery Type: 9V
Data Hold: Yes
Audible Continuity: Yes
Operating Temp.: 41 Degrees to 104 Degrees F
Diode Test: Yes
AC Response: TRMS
Standards: CE, cULus
Data Logging: Yes
Non-Contact Voltage Detector: Yes
Memory: Min/Max
Capacitance Measurement Accuracy: +/-10.00%
Battery Access: Yes
Minimum Operating Temperature: 41 Degrees F
Basic AC Voltage Accuracy: +/-1.50%
Minimum Resistance Measurement: 400 ohm
Capacitance Measurement Resolution: 0 nF
Instrument Safety Rating: CAT III 600V
Features: Data Logging
Minimum AC Voltage Measurement: 0.1 V
Display Type: Backlit LCD
Dustproof: No
Maximum Storage Temperature: 140 Degrees F
Inrush Current Measurable: Yes
DC Voltage Measurement Resolution: 0.1 mV
Basic DC Voltage Accuracy: +/-1.50%
Calibration Certificate Included: Yes - NIST with Data
Frequency Measurement Resolution: 0 kHz
Minimum Storage Temperature: -4 Degrees F
AC Current Measurement Resolution: 0.1 A
Maximum AC Current Measurement: 1,000 A
Minimum Frequency Measurement: 0 kHz
Minimum Capacitance Measurement: 0 nF
Thermal Imaging: No
Jaw Style: Clamp
Bluetooth Compatible: No
Minimum AC Current Measurement: 0.1 A
Frequency Measurement Accuracy: +/-1.50%
Maximum DC Voltage Measurement: 600 V
Resistance Measurement Resolution: 0.1 megaohm
AC Response Calculation: Average
Maximum Capacitance Measurement: 40,000 uF
Maximum Operating Temperature: 104 Degrees F
Waterproof: No
Instrument Counts: 4,000
Minimum DC Voltage Measurement: 0.1 mV
Maximum Resistance Measurement: 40 megaohm
Current Leakage Testing: No
AC Voltage Measurement Resolution: 0.1 mV
Intrinsically Safe: No
Maximum AC Voltage Measurement: 600 V
Batteries Included: Yes
Basic AC Current Accuracy: +/-2.80%
Resistance Measurement Accuracy: +/-3.50%
Maximum Frequency Measurement: 4 kHz
Removable Screen: No
Parameters Measured: AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Duty Cycle, Frequency, Inrush Current, Resistance
Temperature Types Measured: Infrared Temperature
Includes Auto Sensing: No Auto Sensing Included
CAT Safety Rating: CAT III 600V

Description

Digital Clamp Meter, Audible Continuity Yes, Safety Rating CAT III 600V, AC Response Calculation Average, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement Not Applicable, Maximum DC Voltage Measurement 600 V, Current Leakage Testing No, Parameters Measured AC Current, AC Voltage, Capacitance, Continuity, DC Voltage, Diode, Duty Cycle, Frequency, Inrush Current, Resistance, Intrinsically Safe No, Dustproof No, Waterproof No
