- Item
- Digital Multimeter
- Display Type
- Backlit LCD
- Data Hold
- Yes
- Instrument Counts
- 6,000
- Includes
- Battery, Carrying Case, Test Leads, Magnetic Hanging Strap, Type K Bead Wire Temperature Probe
- Standards
- CE, cULus
- Auto Power Off
- Yes
- Data Logging
- No
- Audible Continuity
- Yes
- Diode Test
- Yes
- Calibration Certificate Included
- Yes
- Max. DC Amps
- 20 A
- Max. AC Amps
- 20
- NIST Certification By
- FLIR
- Instrument Frequency Counter Range
- 0.001 Hz to 40 MHz
- Temp. Range
- -50 Degrees to 1382 Degrees F
- Auto Ranging
- Yes
- Special Features
1000V Input Protection on All Functions, 20A Max Current, 6,000 Count Large Backlit LCD with Bargraph, Complete with Double Molded Test Leads, Magnetic Hanging Strap, Type K Bead Wire Temp Probe, Carrying Case and 9V Battery, Double Molded Housing for Waterproof Protection, Min/Max, Data Hold, Relative, Auto Power Off, True-RMS DMM with 11 Functions and 0.09% Basic Accuracy AC/DC Voltage & Current, Resistance, Capacitance, Frequency, Temperature, Duty Cycle, Diode/Continuity, Dual Sensitivity Frequency Functions (Electrical/Electronic)
- Bar Graph
- Yes
- Peak Hold
- Yes
- Max. AC Volts
- 1,000
- Series

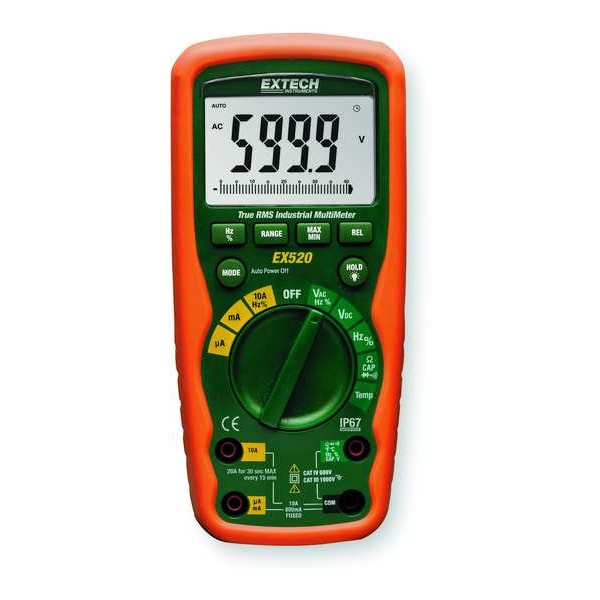

- EXTECH (R) EX520
- Multimeter Style
- Full Size
- Basic DC Accuracy
- +/-0.09% of Reading +2 Digits
- Capacitance Range
- 10 pF to 1000 uF
- AC Response
- TRMS
- Interface
- None
- Max. Ohms
- 40 megohm
- Duty Cycle
- Duty Cycle Test Included
- Max. DC Volts
- 1,000
- Min./Max. Memory
- yes
- Battery Type
- 9V Alkaline
- Instrument Safety Rating
- CAT III 1000V, CAT IV 600V
- Display
- Backlit LCD with Bargraph
- Intrinsically Safe
- No
- Calibration Certificate
- Included
- Resistance Measurement Accuracy
- +/-0.3%
- Temperature Measurement Accuracy
- +/-3.00%
- Maximum AC Voltage Measurement
- 1,000 V
- Maximum Storage Temperature
- 140 Degrees F
- Batteries Included
- Yes
- Minimum AC Current Measurement
- 0.1 uA
- Basic AC Current Accuracy
- +/-1.5%
- DC Current Measurement Resolution
- 0.1 uA
- Minimum DC Voltage Measurement
- 0.1 V
- Computer Interface Connection Type
- None
- Current Leakage Testing
- No
- Style
- Full Size
- Battery Voltage
- 9 V
- Parameters Measured
- AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Frequency, Resistance, Temperature
- AC Response Calculation
- TRMS
- Minimum Temperature Measurement
- -4 Degrees F
- Minimum AC Voltage Measurement
- 1 V
- Fuse Access
- Yes
- Removable Screen
- No
- Frequency Measurement Accuracy
- +/-1%
- Minimum Operating Temperature
- 41 Degrees F
- Resistance Measurement Resolution
- 0.1 ohm
- Bar Graph Included
- Yes
- Minimum Resistance Measurement
- 0.1 ohm
- Dustproof
- Yes
- Basic DC Voltage Accuracy
- +/-0.09%
- Basic AC Voltage Accuracy
- +/-2%
- Software Included
- No
- Multimeter Features
- Dustproof, Waterproof
- Maximum Operating Temperature
- 104 Degrees F
- Battery Chemistry
- Alkaline
- Minimum Capacitance Measurement
- 0.01 nF
- Maximum DC Current Measurement
- 20 A
- Frequency Measurement Resolution
- 0 Hz
- AC Current Measurement Resolution
- 0.1 uA
- Maximum Resistance Measurement
- 40 megaohm
- NIST Certification By Manufacturer
- FLIR
- Minimum DC Current Measurement
- 0.1 uA
- Maximum Capacitance Measurement
- 1,000 uF
- Battery Access
- Yes
- Temperature Measurement Resolution
- 1 Degrees F
- Maximum Frequency Measurement
- 40 MHz
- Minimum/Maximum Memory
- Min/Max
- DC Voltage Measurement Resolution
- 0.1 V
- AC Voltage Measurement Resolution
- 0.001 V
- Capacitance Measurement Resolution
- 0.01 nF
- Minimum Frequency Measurement
- 0 Hz
- Maximum DC Voltage Measurement
- 1,000 V
- Capacitance Measurement Accuracy
- +/-1%
- Basic DC Current Accuracy
- +/-1%
- Thermal Imaging
- No
- Bluetooth Compatible
- No
- Minimum Storage Temperature
- -4 Degrees F
- IP Rating
- IP67
- Waterproof
- Yes
- Maximum Temperature Measurement
- 1,382 Degrees F
- Weight
- 12.3 oz
- Maximum AC Current Measurement
- 20 A
- Includes Auto Sensing
- No Auto Sensing Included
- Temperature Types Measured
- Temperature K
- CAT Safety Rating
- CAT III 1000V, CAT IV 600V
