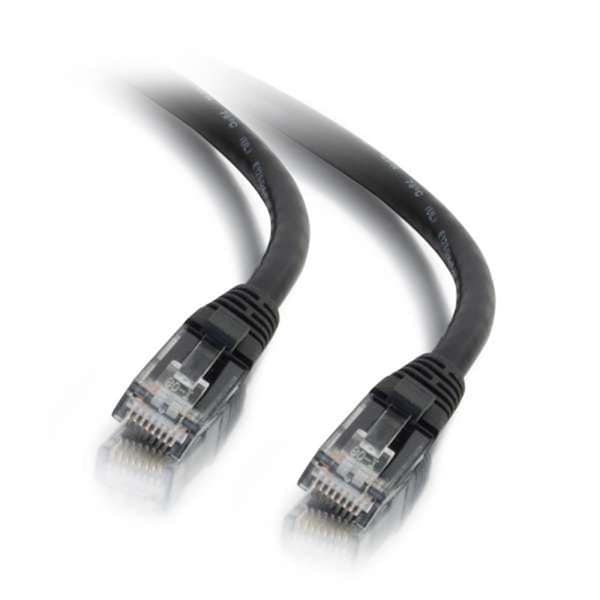

4 ft. Cat6 Snagless Unshielded-UTP Ethernet Network Patch Cable - Black
Mfr # FA895259
Zoro # G503782417
Specifications
Product Information
- MFR #
- FA895259
- Zoro #
- G503782417
- UPC #
- 727272287105
- Country of Origin
- China
Description
For fast Ethernet and Gigabit computer networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat6 TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief.
Features- Snagless design protects clips when plugging and unplugging
- Standard RJ45 connectors and unshielded twisted pair wires
- Conductor Type - 24AWG (7/0.20), Stranded Bare Copper
- Insulation - H-D PE
- Diameter - 0.98 ± 0.05 mm
- Connector Type - 8P8C (RJ45)
- Connector Material - Polycarbonate
- Contact Material - Copper Alloy, Gold Plating - 50μm
- Hood Material - Molded PVC
- Jacket - PVC
- Minimum Average Thickness - 0.60mm
- Outer Diameter - 6.20 ± 0.30 mm
- Color: Black
- Conductor DC Resistance: 9.38 Ohm 100m (maximum)
- Impedance: 100 Ohm
- Capacitance: 5600pf/100m
- Voltage Rating: 30V
- Temperature Rating: 60°C
- Size: 4 ft.
- Weight : 0.129 lbs
