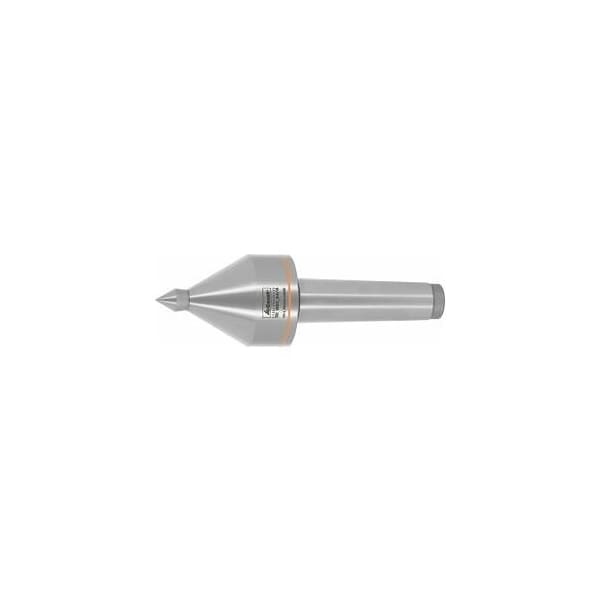

Precision Revolving Lathe Center with Extended Point, Diameter/Morse Taper: 64/3

Tool fully hardened and ground. Bearings designed to take high axial forces. Maintenance-free greased for life. Shaft seal prevents ingress of dirt and cooling fluids. Description: Lathe Centers are mainly used on lathes to support long and slim workpieces, since with these workpieces there would otherwise be a risk of the workpiece bending or moving around as a result of the forces generated. The lathe Center is secured with a Morse taper. The workpiece is clamped in the chuck and a counterbore is added using a Center drill. After re-clamping, the lathe Center is then inserted. Application: Combi tool for standard centering and machining pipes. Perfect all-purpose tip for general use on manual and CNC machines. smallest Dia d: 16 mm reduced head length L1: 78 mm Head length L: 100 mm maximum radial run-out: 0.005 mm maximum speed: 3800 min-1 for workpiece weight: 330 kg
