  11. Cable Puller, 9986 lb, 120V, w/Versi Boom
Shop All Cable Pullers
Greenlee

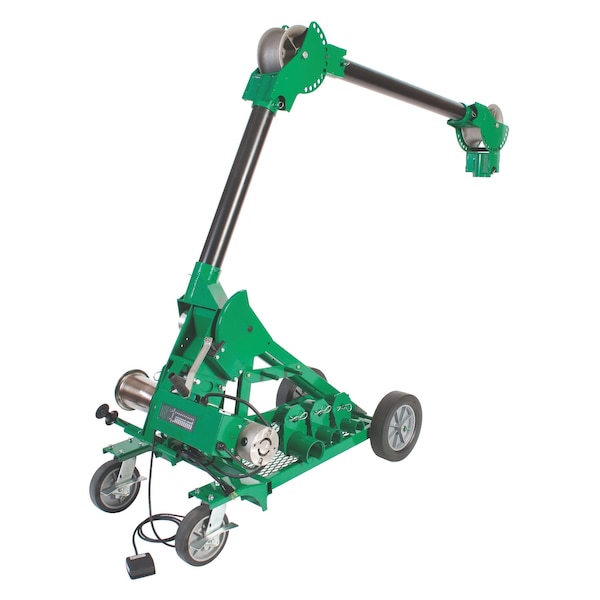

Cable Puller, 9986 lb, 120V, w/Versi Boom

product price: $13,125.99
/ea
Item requires special delivery charges. A $175.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Pulling Force (Lb.) 10,000
  • Cable Capacity 1200 ft with (2) 90 Degrees Bends, 3 x 1000 MCM Copper Cables, 4 x 500 MCM Copper Cables, 4 x 750 MCM Copper Cables, 750 ft with (4) 90 Degrees Bends, 800 ft with (3) 90 Degrees Bends
  • Conduit 3 in Rigid
  • Features Removable Foot Pedal
  • Function For Cable Pulling
See all product information

Product Information

Dimensions

Wheel Size (In.) (2) 12 in Static, (2) 8 in Swivel
Overall Height 6.75 in
Overall Length 11.5 in
Overall Width 26 in
Required Pulling Rope Diameter 7/8 in
Wheel Size (2) 12 in Static, (2) 8 in Swivel
Maximum Compatible Conduit Size 3 in
Boom Length 20 ft

Details

Item Cable Puller
Pulling Force (Lb.) 10,000
Cable Capacity 1200 ft with (2) 90 Degrees Bends, 3 x 1000 MCM Copper Cables, 4 x 500 MCM Copper Cables, 4 x 750 MCM Copper Cables, 750 ft with (4) 90 Degrees Bends, 800 ft with (3) 90 Degrees Bends
Conduit 3 in Rigid
Features Removable Foot Pedal
Function For Cable Pulling
Use With 7/8 in dia (22.2mm) Double-Braided Polyester Composite Rated at 32,000 lb (142kN) min Breaking Strength
Motor Two Speed
Voltage 115V AC
Wheel Type Solid Rubber on Plastic Hubs
Amps 20 A
Includes Boom, Force Gauge
Number of Wheels 4
Application Cable Pulling
Current 20 A
Tool Type Cable Puller
Minimum Pulling Speed at Maximum Pulling Force 7 fpm
Horsepower 1 1/2 hp
Phase Single-Phase
Frequency 1 Hz
Tool Weight 408 lb
Maximum Continuous Pulling Force 6,500 lbf
Maximum Momentary Pulling Force 10,000 lbf
No Load Pulling Speed 16 fpm
Power Source Corded
Required Pulling Rope Type Double-Braided Polyester Composite

Description

Cable Puller, Tool Type Cable Puller, Maximum Momentary Pulling Force 10,000 lbf, No Load Pulling Speed 16 fpm, Boom Length 20 ft, Horsepower 1 1/2 hp, Voltage 115V AC, Current 20 A, Tool Weight 408 lb, Application Cable Pulling, Cable Capacity 1200 ft with (2) 90 Degrees Bends, 3 x 1000 MCM Copper Cables, 4 x 500 MCM Copper Cables, 4 x 750 MCM Copper Cables, 750 ft with (4) 90 Degrees Bends, 800 ft with (3) 90 Degrees Bends, Features Removable Foot Pedal, Frequency 1 Hz
