Hamilton

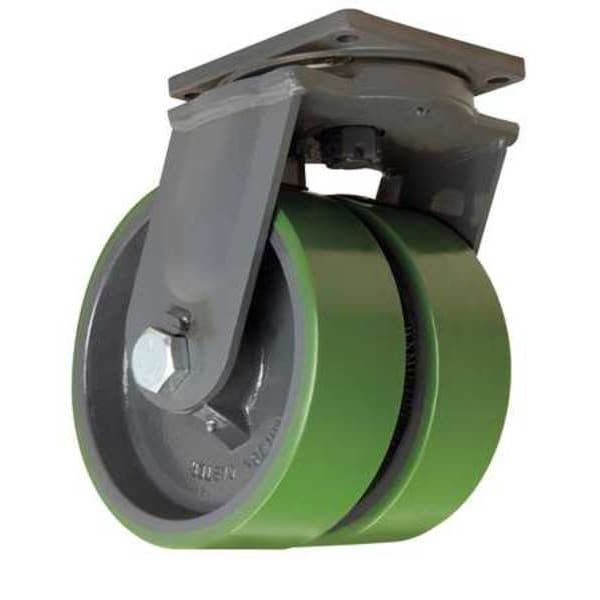

Dual Wheel Caster, Polyurethane, 12 in.

Hamilton Dual Wheel Caster, Polyurethane, 12 in. S-MDD-124DT
Hover or click to zoom Tap to zoom
$1,365.93
  • Caster Brake Included: No
  • Caster Load Rating Range: Maxi-Duty
  • Caster Sub-Type: Swivel
See full product details
This item ships free.
Total: $1,365.93

Hamilton #S-MDD-124DT Specifications

  • Caster Brake Included: No
  • Caster Load Rating Range: Maxi-Duty
  • Caster Sub-Type: Swivel
  • Caster Wheel Shape: Standard
  • Caster Wheel/Tread Material: Cast Iron/Polyurethane
  • Load Rating: 9600 lb
  • Number of Wheels: 2
  • Overall Height: 15-1/2"
  • Wheel Dia.: 12 in
  • Wheel Width: 4 in
  • Stem Dia.: No Stem
  • Caster Stem Type: No Stem/Plate Included
  • Caster Core Material: Cast Iron
  • Wheel Color: Green
  • Non-Marking: Yes
  • Caster Min. Temp.: -40 Degrees F
  • Caster Temp. Range Available: Yes
  • Caster Temp. Range: -40 Degrees to 200 Degrees F
  • Outside Bolt Hole Spacing: 7 in x 7 in
  • Durometer: 90 Shore A
  • Caster Plate Hole Pattern: D
  • Plate Size: 8-1/2" x 8-1/2"
  • Caster Max. Temp.: 200 Degrees F
  • Caster Swivel Lock Type: No Lock Included
  • Plate Caster Bolt Hole Pattern: D
  • Inside Bolt Hole Spacing: 7 in x 7 in
  • Frame Finish: Enamel
  • Caster Wheel Bearings: Roller
  • Caster Product Group: Swivel Caster
  • Caster Plate Thickness: 5/8"
  • Caster Plate Size: 8-1/2" x 8-1/2"
  • Core Color: Gray
  • Plate Thickness: 0.625"
  • Caster Raceway: Roller
  • Item: Easy-Turn Standard Plate Caster
  • Frame Material: Steel
  • Mounting Bolt Dia.: 5/8 in
  • Caster Frame Material: Steel
  • Caster Brake Type: No Brake Included
  • Wheel/Tread Hardness: 95 Shore A
  • Swivel Lock Type: No Lock Included
  • Swivel Raceway Type: Roller
  • Includes Thread Guards: No
  • Wheel/Tread Hardness Rating: Firm
  • Mounting Height: 15 1/2 in
  • Mounting Plate Size: 8 1/2 in x 8 1/2 in
  • Load Rating Range: 6000 lb and Greater
  • Tread Shape: Standard
  • Mounting Plate Bolt Hole Pattern: D
  • Wheel Core Material: Cast Iron
  • Number of Mounting Holes: 4
  • Swivel Construction: Kingpin
  • Wheel Bearing Type: Tapered Roller
  • Wheel/Tread Material: Polyurethane
  • Wheel/Tread Color: Green
  • Country of Origin (subject to change): United States

Description

Swivel, Easy-Turn Standard Plate Caster, Load Rating 9600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 12 in, Wheel Width 4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Cast Iron, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake Included, Tread Shape Standard
