This item is Discontinued.

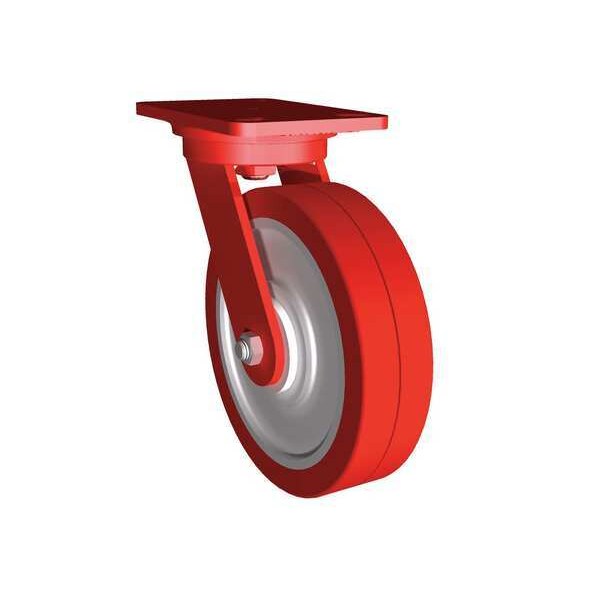

Hamilton Plate Caster, Swivel, Polyurethane, 9 3/4"H S-HS-8SWF

This item is Discontinued.

Hamilton

Plate Caster, Swivel, Polyurethane, 9 3/4"H (Discontinued)

Mfr # S-HS-8SWF
Zoro # G6944874
Country of Origin United States
Category Plate Casters
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-HS-8SWF
Zoro #
G6944874
UPC #
-
Country of Origin
United States

Dimensions

Plate Size
4-1/2" x 6-1/2"
Wheel Dia.
8 in
Stem Dia.
No Stem
Caster Plate Size
4-1/2" x 6-1/2"
Mounting Bolt Dia.
1/2 in
Overall Height
9-3/4"
Wheel Width
2 in
Mounting Plate Size
4 1/2 in x 6 1/2 in
Mounting Height
9 3/4 in

Details

Caster Brake Included
No
Caster Load Rating Range
Heavy-Duty
Caster Wheel Shape
Twin Wheel
Caster Wheel/Tread Material
Aluminum/Polyurethane
Caster Stem Type
No Stem/Plate Included
Wheel Color
Red
Caster Temp. Range
-40 Degrees to 200 Degrees F
Frame Material
Steel
Core Color
Silver
Number of Wheels
2
Caster Min. Temp.
-40 Degrees F
Durometer
80 Shore A
Caster Product Group
Swivel Caster
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Wheel Bearings
Ball
Load Rating
2000 lb
Caster Frame Material
Steel
Non-Marking
Yes
Plate Caster Bolt Hole Pattern
A
Caster Swivel Lock Type
No Lock Included
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Caster Raceway
Single Ball
Caster Core Material
Aluminum
Caster Max. Temp.
200 Degrees F
Frame Finish
Enamel
Caster Plate Hole Pattern
A
Item
Plate Caster
Caster Sub-Type
Swivel
Caster Temp. Range Available
Yes
Caster Brake Type
No Brake
System of Measurement
Inch
Wheel Bearing Type
Ball
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Number of Mounting Holes
4
Wheel Core Material
Aluminum
Wheel/Tread Hardness
82 Shore A
Wheel/Tread Hardness Rating
Soft
Tread Shape
Standard
Mounting Plate Bolt Hole Pattern
A
Swivel Construction
Kingpin
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
Load Capacity - Maximum
2,000 lb
Wheel Hardness Rating
82 Shore A

Description

Swivel, Plate Caster, Load Rating 2000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Aluminum, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
