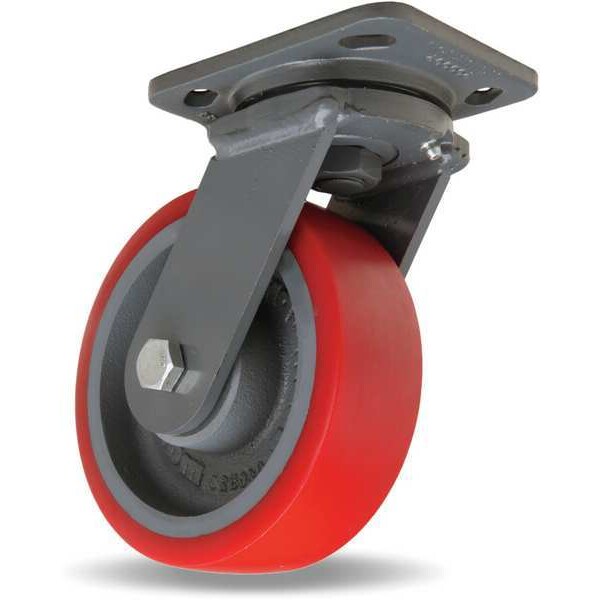

  6. Plate Caster, Swivel, Poly, 4 in., 900 lb., Red

This item is Discontinued.

Hamilton Plate Caster, Swivel, Poly, 4 in., 900 lb., Red S-WH-4TRB-4SL-FB

Plate Caster, Swivel, Poly, 4 in., 900 lb., Red (Discontinued)

  • Mfr # S-WH-4TRB-4SL-FB
  • Zoro # G6439587
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
S-WH-4TRB-4SL-FB
Zoro #
G6439587
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
2 in
Mounting Height
5 5/8 in
Mounting Plate Size
4 in x 5 in
Mounting Bolt Dia.
1/2 in
Overall Height
5-5/8"
Stem Dia.
No Stem
Caster Plate Thickness
1/4"
Plate Thickness
1/4"
Caster Plate Size
4" x 5"
Plate Size
4" x 5"

Details

Item
Plate Caster
Caster Brake Included
Yes
Caster Load Rating Range
Heavy-Duty
Caster Sub-Type
Swivel
System of Measurement
Inch
Caster Wheel Shape
Standard
Wheel/Tread Material
Polyurethane
Caster Wheel/Tread Material
Cast Iron/Polyurethane
Caster Brake Type
Total Lock
Load Rating
900 lb
Wheel Bearing Type
Ball
Caster Stem Type
No Stem/Plate Included
Wheel/Tread Color
Red
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in x 3 in
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Caster Plate Hole Pattern
B
Extended Lead
No
Replacement Wheel
49H439
Caster Max. Temp.
200 Degrees F
Caster Product Group
Swivel Caster with Four Position Swivel Lock and Brake
Caster Wheel Bearings
Ball
Frame Finish
Enamel
Caster Raceway
Single Ball
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Thread Guards
No
Caster Min. Temp.
-40 Degrees F
Frame Material
Forged Steel
Standards
ANSI ICWM
Features
Floor Protective
Wheel Color
Red
Caster Temp. Range Available
Yes
Plate Caster Bolt Hole Pattern
B
Caster Core Material
Cast Iron
Caster Swivel Lock Type
No Lock Included
Caster Temp. Range
-40 Degrees to 200 Degrees F
Includes
Brake
Durometer
90 Shore A
Load Rating Range
300 to 999 lb
Swivel Raceway Type
Single Ball
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness
94 Shore A
Includes Thread Guards
No
Swivel Construction
Kingpin
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Mounting Plate Bolt Hole Pattern
B
Load Capacity - Maximum
900 lb

Description

Swivel, Plate Caster, Load Rating 900 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Total Lock, Tread Shape Standard
