This item is Discontinued.

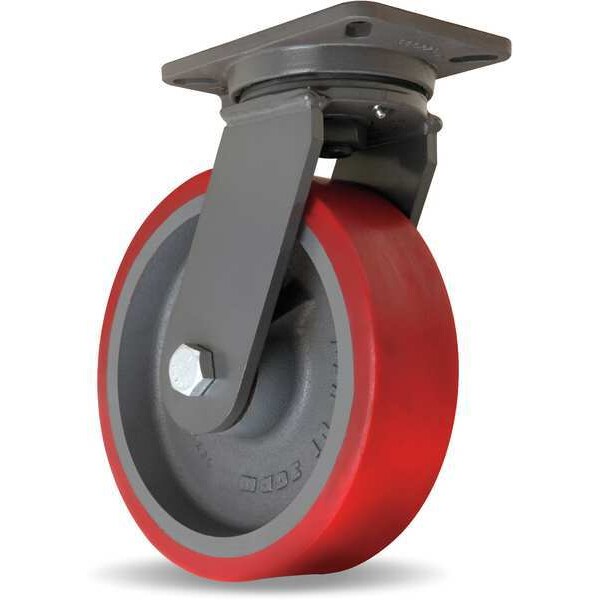

Hamilton PlateCaster, Swivel, Polyurethane, 12 1/2"H S-CH-13TRB

This item is Discontinued.

Hamilton

PlateCaster, Swivel, Polyurethane, 12 1/2"H (Discontinued)

Mfr # S-CH-13TRB
Zoro # G6881707
Country of Origin United States
Category Plate Casters
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S-CH-13TRB
Zoro #
G6881707
UPC #
-
Country of Origin
United States

Dimensions

Stem Dia.
No Stem
Plate Thickness
1/2"
Caster Plate Thickness
1/2"
Mounting Bolt Dia.
1/2 in
Plate Size
5-1/4" x 7-1/4"
Wheel Dia.
10 in
Wheel Width
3 in
Caster Plate Size
5-1/4" x 7-1/4"
Overall Height
12-1/2"
Mounting Height
12 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Fits Chest Size
Floor Protective

Details

Caster Brake Included
No
Caster Load Rating Range
Heavy-Duty
Caster Wheel Shape
Standard
Caster Wheel/Tread Material
Forged Steel/Polyurethane
Caster Stem Type
No Stem/Plate Included
Includes
Spanner Bushing
Caster Temp. Range
-40 Degrees to 200 Degrees F
Caster Plate Hole Pattern
A
Caster Max. Temp.
200 Degrees F
Frame Finish
Enamel
Frame Material
Forged Steel
Features
Floor Protective
Replacement Wheel
49H444
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Thread Guards
No
Caster Wheel Bearings
Ball
Core Color
Gray
Wheel Color
Red
Extended Lead
No
Caster Raceway
Single Ball
Load Rating
3600 lb
Durometer
90 Shore A
Caster Product Group
Swivel Caster
Caster Temp. Range Available
Yes
Caster Min. Temp.
-40 Degrees F
Plate Caster Bolt Hole Pattern
A
Number of Wheels
1
Caster Sub-Type
Swivel
Non-Marking
Yes
Item
Plate Caster
Caster Swivel Lock Type
No Lock Included
Standards
ANSI ICWM
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Core Material
Cast Iron
Caster Frame Material
Steel
System of Measurement
Inch
Caster Brake Type
No Brake
Load Rating Range
3000 to 5999 lb
Tread Shape
Standard
Swivel Lock Type
No Lock Included
Includes Thread Guards
No
Mounting Plate Bolt Hole Pattern
A
Swivel Construction
Kingpin
Wheel Core Material
Iron
Wheel/Tread Hardness
94 Shore A
Number of Mounting Holes
4
Wheel Bearing Type
Ball
Swivel Raceway Type
Single Ball
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Red
Wheel Hardness Rating
94 Shore A
Load Capacity - Maximum
3,600 lb

Description

Swivel, Plate Caster, Load Rating 3600 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
