  6. Plte Caster, Rgd, Poly, 10 in., 3600 lb.

This item is Discontinued.

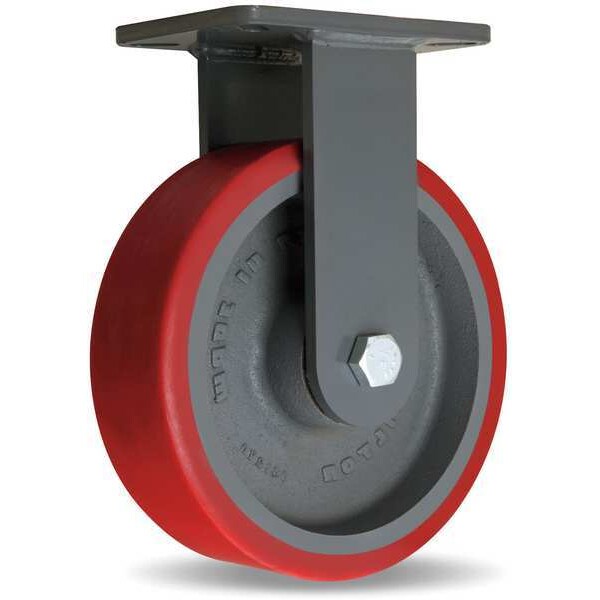

Hamilton Plte Caster, Rgd, Poly, 10 in., 3600 lb. R-CH-13TRB

Plte Caster, Rgd, Poly, 10 in., 3600 lb. (Discontinued)

  • Mfr # R-CH-13TRB
  • Zoro # G6477825
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
R-CH-13TRB
Zoro #
G6477825
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
10 in
Wheel Width
3 in
Mounting Height
12 1/2 in
Mounting Plate Size
5 1/4 in x 7 1/4 in
Mounting Bolt Dia.
1/2 in
Plate Thickness
1/2"
Plate Size
5-1/4" x 7-1/4"
Caster Plate Size
5-1/4" x 7-1/4"
Overall Height
12-1/2"
Caster Plate Thickness
1/2"

Details

Item
Plate Caster
Caster Brake Included
No
Caster Load Rating Range
Heavy-Duty
Caster Sub-Type
Rigid
System of Measurement
Inch
Caster Wheel Shape
Standard
Wheel/Tread Material
Polyurethane
Caster Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
3000 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Red
Wheel Hardness Rating
94 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Gray
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
4-1/8 in x 6-1/8 in
Caster Plate Hole Pattern
A
Replacement Wheel
49H444
Thread Guards
No
Frame Material
Steel
Features
Floor Protective
Extended Lead
No
Caster Core Material
Cast Iron
Caster Min. Temp.
-40 Degrees F
Caster Temp. Range
-40 Degrees to 200 Degrees F
Caster Product Group
Rigid Caster
Durometer
90 Shore A
Caster Temp. Range Available
Yes
Wheel Color
Red
Caster Swivel Lock Type
No Lock Included
Caster Wheel Bearings
Ball
Frame Finish
Enamel
Includes
Spanner Bushing
Caster Max. Temp.
200 Degrees F
Standards
ANSI ICWM
Plate Caster Bolt Hole Pattern
A
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes Thread Guards
No
Swivel Construction
Kingpin
Mounting Plate Bolt Hole Pattern
A
Wheel Core Material
Iron
Wheel/Tread Hardness Rating
Firm
Swivel Lock Type
No Lock Included
Load Rating Range
3000 to 5999 lb
Wheel/Tread Hardness
94 Shore A
Load Capacity - Maximum
3,000 lb

Description

Rigid, Plate Caster, Load Rating 3000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 10 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
