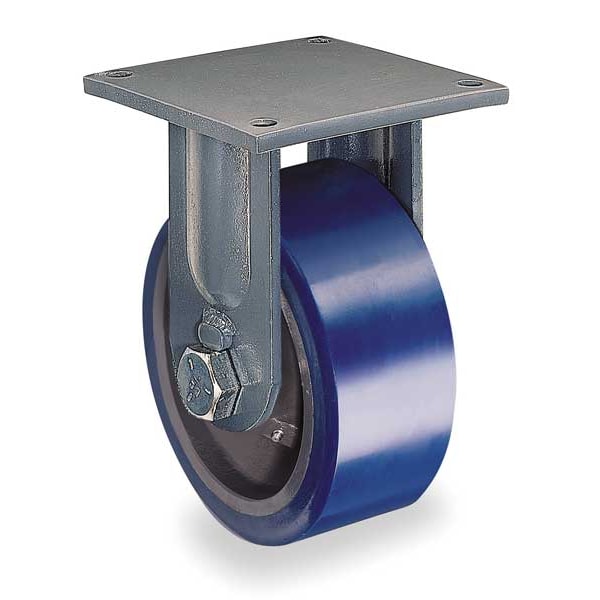

Hamilton Plte Caster, Rgd, Poly, 12 in., 6000 lb. R-MD-124SYT - main

Plte Caster, Rgd, Poly, 12 in., 6000 lb.

  • Mfr # R-MD-124SYT

  • Zoro # G6206751

product price:  $598.99
/ea
Free Shipping & Returns

Key Features

Features
Floor Protective
Core Color
Gray
Thread Guards
No
Outside Bolt Hole Spacing
7 in x 7 in
Number of Wheels
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
R-MD-124SYT
Zoro #
G6206751
UPC #
-
Country of Origin
United States

Dimensions

Overall Height
15-1/2"
Wheel Dia.
12 in
Wheel Width
4 in
Mounting Bolt Dia.
1/2 in
Mounting Height
15 1/2 in
Mounting Plate Size
8 1/2 in x 8 1/2 in
Bolt Hole Spacing - Length
7 in
Bolt Hole Spacing - Width
7 in
Mounting Plate Width
8 1/2 in
Mounting Plate Length
8 1/2 in
For Axle Dia.
1 1/4 in
Mounting Plate Thickness
1/2 in
Overall Wheel Width
4 in

Details

Features
Floor Protective
Core Color
Gray
Thread Guards
No
Outside Bolt Hole Spacing
7 in x 7 in
Number of Wheels
1
Caster Plate Hole Pattern
D
Caster Brake Included
No
Caster Sub-Type
Rigid
Load Rating
6000 lb
Non-Marking
Yes
Standards
ANSI ICWM
Extended Lead
No
Replacement Wheel
5VJ43
Caster Frame Material
Steel
Caster Temp. Range Available
Yes
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Includes
Spanner Bushing
Wheel Color
Blue
Inside Bolt Hole Spacing
7 in x 7 in
Item
Plate Caster
Frame Finish
Enamel
Load Rating Range
6000 lb and Greater
Caster Brake Type
No Brake
Swivel Construction
Kingpin
Wheel Bearing Type
Roller
Wheel Core Material
Steel
Wheel/Tread Hardness Rating
Firm
Includes Thread Guards
No
Swivel Lock Type
No Lock Included
Tread Shape
Standard
Number of Mounting Holes
4
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
System of Measurement
Inch
Load Capacity - Maximum
6,000 lb
Wheel Hardness Rating
95 Shore A
Wheel Core Type
Solid
Mounting Plate Shape
Square
For Surface Type
Concrete
Mounting Hole Type
Hole
Operating Temperature Range
-40 Degrees to 200 Degrees F
Operating Temperature - Maximum
200 Degrees F
Operating Temperature - Minimum
-40 Degrees F

Description

Rigid, Plate Caster, Load Rating 6000 lb, Swivel Lock Type No Lock Included, Wheel Dia. 12 in, Wheel Width 4 in, Wheel/Tread Material Polyurethane, Wheel Core Material Steel, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
