  6. Plte Caster, Rgd, Poly, 8 in., 1200 lb., B

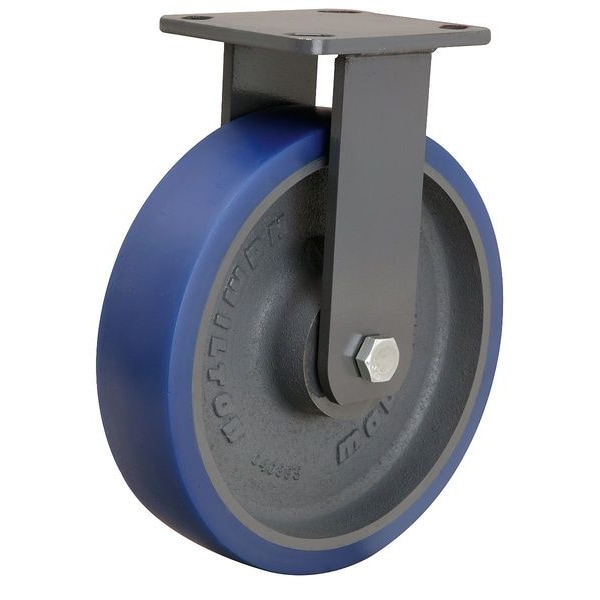

Hamilton Plte Caster, Rgd, Poly, 8 in., 1200 lb., B R-WH-8SPB - main

Plte Caster, Rgd, Poly, 8 in., 1200 lb., B

  • Mfr # R-WH-8SPB

  • Zoro # G7564837

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Core Color
Gray
Wheel Dia.
8 in
Caster Brake Included
No
Outside Bolt Hole Spacing
3 in x 3 in
Mounting Bolt Dia.
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
R-WH-8SPB
Zoro #
G7564837
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
8 in
Mounting Bolt Dia.
3/8 in
Overall Height
9-1/2in
Wheel Width
2 in
Mounting Plate Size
4 in x 4 1/2 in
Mounting Height
9 1/2 in
Overall Wheel Width
2 in
Outside Slot Spacing - Width
3 in
Mounting Plate Length
5 in
Inside Slot Spacing - Width
2.625 in
Mounting Plate Width
4 in
Mounting Plate Thickness
1/4 in
For Axle Dia.
1/2 in
Inside Slot Spacing - Length
3 in
Outside Slot Spacing - Length
3.625 in

Details

Core Color
Gray
Caster Brake Included
No
Outside Bolt Hole Spacing
3 in x 3 in
Wheel Color
Blue
Caster Frame Material
Steel
Item
Plate Caster
Thread Guards
No
Extended Lead
No
Standards
ANSI ICWM
Caster Plate Hole Pattern
B
Number of Wheels
1
Replacement Wheel
4DB71
Inside Bolt Hole Spacing
2-5/8 in x 3-5/8 in
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Temp. Range Available
Yes
Load Rating
1200 lb
Non-Marking
Yes
Features
Floor Protective
Frame Finish
Enamel
Includes
Spanner Bushing
Caster Sub-Type
Rigid
Number of Mounting Holes
4
Wheel Core Material
Iron
Load Rating Range
1000 to 2999 lb
Swivel Lock Type
No Lock Included
Wheel Bearing Type
Ball
Caster Brake Type
No Brake
Tread Shape
Standard
Wheel/Tread Hardness Rating
Soft
Includes Thread Guards
No
Wheel/Tread Material
Polyurethane
Wheel/Tread Color
Blue
Wheel Type
Flat-Free
System of Measurement
Inch
Wheel Hardness Rating
82 Shore A
Load Capacity - Maximum
1,200 lb
Mounting Plate Shape
Rectangle
Wheel Core Type
Solid
Mounting Hole Type
Slot
For Surface Type
Concrete
Operating Temperature Range
-50 Degrees to 175 Degrees F
Operating Temperature - Maximum
175 Degrees F
Operating Temperature - Minimum
-50 Degrees F

Description

Rigid, Plate Caster, Load Rating 1200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 8 in, Wheel Width 2 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
