Shop HAMILTON

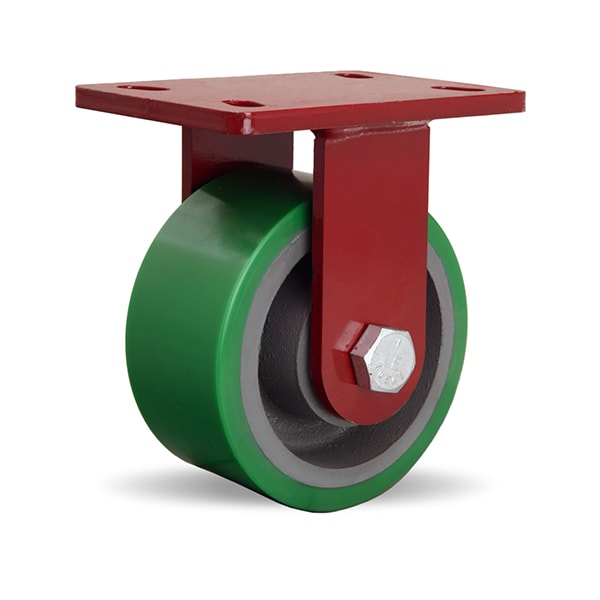

Plate Caster, Rigid, Polyurethane, 7 1/2"H

  • Mfr # R-FM-63DB

  • Zoro # G9083748

product price:
$
210.99
/ea
Free Shipping & Returns

Key Features

System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Wheel Dia.
6 in
Mounting Height
7 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R-FM-63DB
Zoro #
G9083748
UPC #
-
Country of Origin
United States
Item
Plate Caster
Caster Sub-Type
Rigid
System of Measurement
Inch
Wheel/Tread Material
Polyurethane
Caster Brake Type
No Brake
Load Rating
2200 lb
Wheel Bearing Type
Ball
Wheel/Tread Color
Green
Wheel Hardness Rating
95 Shore A
Number of Mounting Holes
4
Tread Shape
Standard
Core Color
Silver
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Inside Bolt Hole Spacing
2-7/16 in x 4-15/16 in
Caster Plate Hole Pattern
A
Thread Guards
No
Standards
ANSI ICWM
Caster Frame Material
Steel
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
Frame Finish
Powder Coated
Includes Mounting Fasteners
No
Includes Thread Guards
No
Load Rating Range
1000 to 2999 lb
For Surface Type
Concrete
Wheel/Tread Hardness Rating
Firm
Wheel Core Type
Solid
Tire Style
Tubeless
Leveling Caster
No
Wheel Core Material
Iron
Includes Spanner Bushing
Yes
With Toe Plate
No
Frame Color
Red
Wheel Bearing Material
Steel
Series
Forgemaster
Operating Temperature Range
-50 Degrees to 200 Degrees F
Swivel Lock Type
No Lock Included
Tread
Flat
Frame Construction
Forged
Caster Mounting Type
Plate
ESD Conductive
Yes
Wheel Type
Flat-Free
NSF Listed
No
Load Capacity - Maximum
2,200 lb
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Load Rating 2200 lb, Swivel Lock Type No Lock Included, Wheel Dia. 6 in, Wheel Width 3 in, Wheel/Tread Material Polyurethane, Wheel Core Material Iron, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
