Indexable Tool Set With 2 in. Boring Head R8 Shank & 4 Boring Bars
Mfr # 1906-0201
Zoro # G310072497
Product Information
- Brand Hhip
- MFR # 1906-0201
- Zoro # G310072497
- UPC # 769053112268
- Country of Origin India
- Category Indexable Drill Inserts
Description

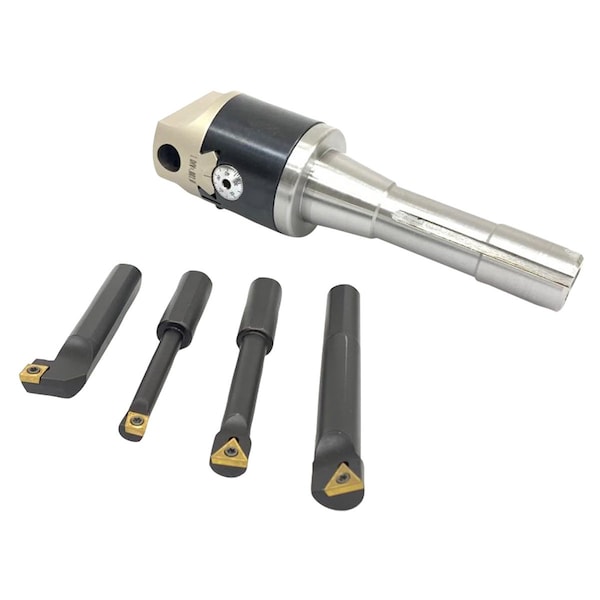

HHIP Indexable Boring Tool Set with 2 in. Boring Head, R8 Shank and 4 Boring Bars Boring head features a 1-1/2 in.-18 threaded back so you can change shanks as needed. A micrometer lead screw provides 0.001 in. direct reading accuracy and makes adjusting easy. Boring head offset is 5/8 in.. Minimum boring diameter is 0.394 in.. Maximum boring diameter is 5.906 in.. Maximum boring depth is 1.970 in.. The crosshole is 1/2 in.. R8 shank has a drawbar end thread of 7/16 in.-20. The included indexable boring bars come with TCMT 21.5 C6 carbide inserts for steel and alloy. The set also comes with torx and l-shape hex wrenches and a fitted carrying case. 1 DIV = 0.001 which means when turning the dial by 1 division/graduation, the boring head's travel is 0.001 in. in radius movement and 0.002 in. in diameter movement.
- •Boring head features a 1-1/2"-18 threaded back so you can change shanks as needed.
- •A micrometer lead screw provides 0.001" direct reading accuracy and makes adjusting easy.
- •Boring head offset is 5/8".
- •Minimum boring diameter is 0.394".
- •Maximum boring diameter is 5.906".
