Gas Safety Shut-Off Valve - Motorized, Class A, EN 161, VK Series

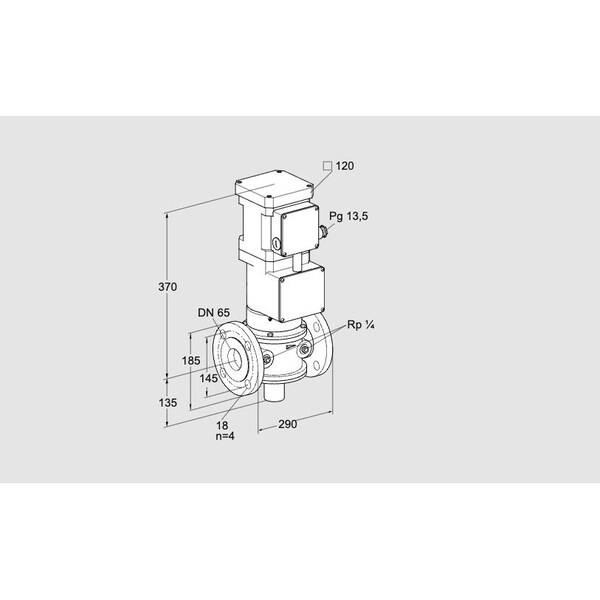

The HONEYWELL KROMSCHRODER VK 65F10W6A93D is a Class A gas safety valve intended for use as an automatic shut-off component in gas and air systems. It operates according to EN 161 standards, remaining closed when de-energized, with slow opening and quick closing functionality. This valve is EU certified and suitable for use where controlled flow of gas or air is required.

Key features include:

• Two-step operation available (VK..Z models)
• GGG 40 housing option (VK..G) for specific system compatibility
• VK..H models are rated for operation at higher pressure ranges, according to product specifications
• VK..X models are certified according to applicable standards for installation in designated hazardous areas zone 1 and 2
• Nominal diameter range: DN 40 to DN 250
• Connection types: threaded or flanged
• Pressure range: max. 230 mbar up to max. 8 bar
• Mains voltage options: 100 V AC to 220/240 V AC
• Housing materials: AlSi or GGG 40; electrical connection via terminals or standard plug/socket Additional versions are available with flow adjustment, position indicator, holding relay for manual restart, or Viton valve disc seal.
