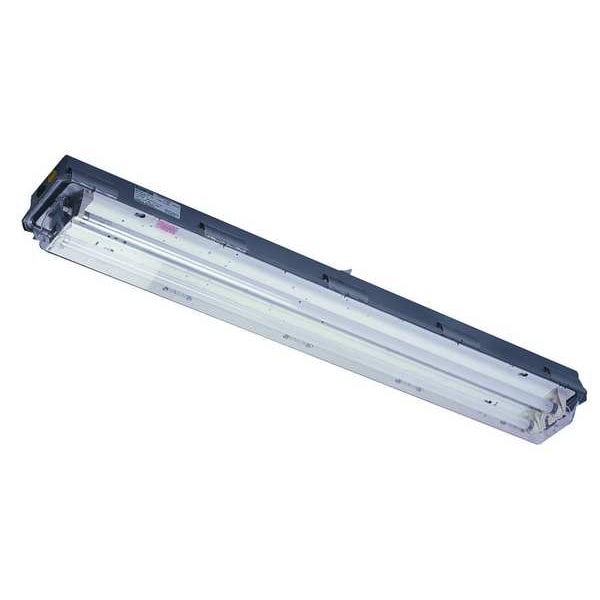

LightFix, Fluor, 32W, 4 1/2"L, 1"W, 6 1/2"H (Discontinued)

Name: LightFix, Fluor, 32W, 4 1/2"L, 1"W, 6 1/2"H
Brand: Hubbell Killark
SKU: G1900403
Price: 1444.99 USD
Availability: Discontinued

Mfr # LZ2S32230

Zoro # G1900403

UPC # 783936395692

Country of Origin United States

Category Hazardous Location Lighting Fixtures

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: LZ2S32230
Zoro #: G1900403
UPC #: 783936395692
Country of Origin: United States

Dimensions

Length: 4 1/2 ft
Height: 6 15/16 in
Width: 8 1/32 in
Height (In.): 6.92
Width (In.): 8.03
Length (In.): 53.51
Nominal Size - Fixtures: 1 ft x 1/2 ft
Overall Width: 8 in
Overall Height: 6 1/2 in
Overall Length: 4 1/2 ft
Wire Rope Length: 4 1/2 ft

Details

Item: Hazardous Location Lighting Fixtures
Standards: NEMA 4X
Lumens: 5,900 lm
Lighting Technology: Fluorescent
Housing Material: Polyester
Voltage: 120/277V AC
Fixture Wattage: 64
Suggested Lamp Item No.: 4PL16
Housing Finish: Unfinished
Mounting: Ceiling
Lamp Watts: 32 W
Lamp Type: Fluorescent
Ambient Temp. Range: -18 to 40 Degrees F
Bulb Designation: F32T8
Lamp Included: No
Fixture Type: Linear Fluorescent
Lamp Quantity: 2
Lens Material: Polycarbonate
Finish: Unfinished
Fixture Voltage: 120 to 277V AC
Item - Decorative and Surface Mount Fixtures: Traditional Surface Mount Fixture
Fixture Type - Decorative and Surface Mount Fixtures: Hazardous Location Strip Light
CA Title 24 Compliant: No
For Number of Bulbs: 2
Lumens per Watt: 42.2 lm/W
Ingress Protection Rating: 66
Emergency Battery Backup: No
Safety Rating: Class I, Division 2, Groups A, B, C, D, Class I, Zone 2, Groups IIC, IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2
Max. Fixture Wattage: 65 W
Mounting Style: Suspended
Housing Color: Gray
Number of Bulbs: 2
For Bulb Type: Fluorescent
Mounting Location: Surface
For Bulb Shape: T8
For Max. Bulb Wattage: 65 W
Temperature Code: T6
Series: LZ2S
Bulb Included: No
Hazardous Location Rating: Class I, Div 2, Group A, B, C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Dimmable: No
Lumen Selectable: Not Selectable
IP Rating: IP66
Light Output: 5,900 lm
Ballast Type: Electronic
Dimming Method: No Dimming
Color Selectable: Not Selectable
Maximum Fixture Wattage: 65 W

Description

Not Applicable, 5,900 lm, 42.2 lm/W, Max. Fixture Wattage 65 W, Mounting Style Suspended, For Bulb Type Fluorescent, Bulb Included No, Dimmable No, LZ2S
