This item is Discontinued.

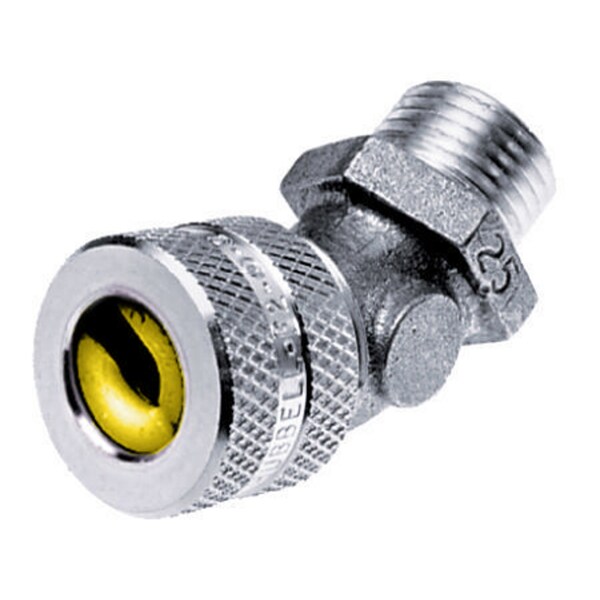

Hubbell Wiring Device-Kellems Kellems Wire Management, Cord Connectors, 45 Degree Male, .63-.75", 1", Aluminum VHC1041

This item is Discontinued.

Hubbell Wiring Device-Kellems

Kellems Wire Management, Cord Connectors, 45 Degree Male, .63-.75", 1", Aluminum (Discontinued)

Mfr # VHC1041
Zoro # G700618526
UPC # 783585202419
Country of Origin United States
Category Cable Connectors
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VHC1041
Zoro #
G700618526
UPC #
783585202419
Country of Origin
United States

Dimensions

Knockout Size
1.36 to 1.41 in
Display Size
1 NPT
Hub Size
1
Cord Dia. Range
0.63- 0.75 in (15.9- 19.0 mm)

Details

Style - Connector
45 Degree Male
Color
Yellow
Cable Opening Min.
0.63 in
Standards
UL 514B, CSA Certified
Cable Opening Max.
3/4 in
Item
Cord Connectors
Material
Aluminum
Type
45 Degree Male
Standard
UL Listed
Series
Standard Duty
Color Code
Yellow
Mounting Hardware Material
Locknut or Tapped Opening
Temp. Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Brand
Hubbell Wiring Device-Kellems
Nema Rating
NEMA Type 4, 4X, 12 and 13
Carton Quantity
10
Environmental Rating
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Application
45 Degree Male- Form 4
Number Of Conductors
Single
Environmental Conditions
Suitable For Use In Wet Locations When Used With A Listed Nylon Washer Between Box And Fitting.
Conductor Range
0.63- 0.75 in (15.9- 19.0 mm)
Item Type
Cord Connectors
Performance
Environmental - Hazardous Locations - Used in hazardous locations per Class I Div. 2, Class II Div. 1 & 2, Class Ill Div. 1 & 2 in accordance with the NEC. Environmental - Operating Temperatures - -30°F to +225°F (-34°C to +107°C)
OEM Brand Name
Hubbell Wiring Device-Kellems
Industry Standard(s)
UL Listed
Temperature Rating
Minimum -30 Deg F to 225 Deg F (-34 Deg C to 107 Deg C)
Material - Mounting Hardware
Locknut or Tapped Opening

Description

Hubbell Wiring Device Kellems, Cord Connectors, 45 Degree Male,.63-.75", 1", Aluminum
