  6. Locking Connector, L20-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

This item is Discontinued.

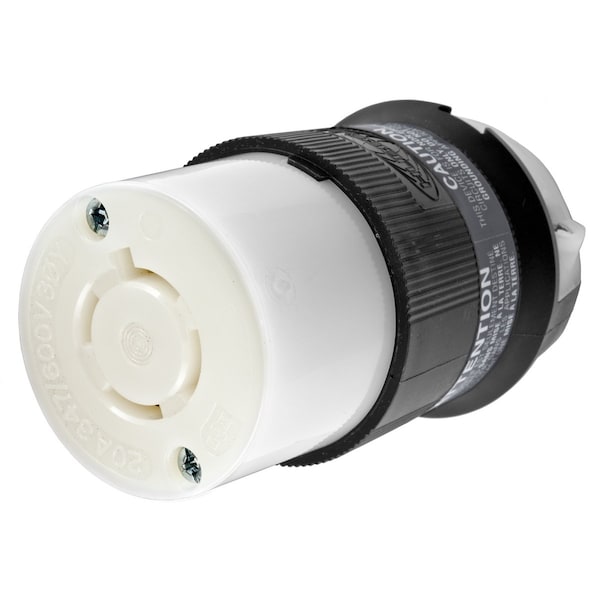

Hubbell Wiring Device-Kellems Locking Connector, L20-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White HBL2463

Locking Connector, L20-20R, 20 A, 347/600V AC, Three Phase, 4 Pole, Screw Terminals, Black, White (Discontinued)

  • Mfr # HBL2463
  • Zoro # G600701847
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HBL2463
Zoro #
G600701847
UPC #
783585038445
Country of Origin
United States

Dimensions

Width
2.33 in
Dimensions
2.33 in x 2.33 in x 3.86 in
Height
3.86 in
Length
2.33 in
Wire Size
#16 AWG to #8 AWG
For Maximum Cable Diameter
1.15 in
For Minimum Cable Diameter
0.35 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L20-20R
Current Rating
20 A
Voltage Rating
347/600V AC
Phase
Three
Number of Poles
4
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Non-Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
CSA C22.2 No.42, Fed. Spec. W-C-596, UL 498
Resistance Properties
Chemical Resistant, Impact Resistant
Material
.031" (.8) Brass
Body Material
Natural White Nylon
IP Rating
IP20
Special Features
Terminals identified in accordance with UL 498
Application
Heavy Duty Industrial
Dielectric Strength
Withstands 2,000V minimum
Weight
0.4
Flame Resistant
HB or better per UL 94 or CSA 22.2 No. 0.6
Amperage Rating
20 A
Cord Range
0.350"-1.150" (9-29)
Insulation
Insulated Body
Material - Mounting Hardware
Cord Mounted
OEM Brand Name
Hubbell Wiring Device-Kellems
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6 Environmental - Moisture Resistance - IP20 Suitability Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact) Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only. Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Description

Hubbell Wiring Device Kellems, Locking Devices, TwistLock, Industrial,Female Connector Body, 20A 3-PhaseWye 277/480V AC, 4-Pole 4-Wire Non-Grounding, L20-20R, Screw Terminal, Black and White
