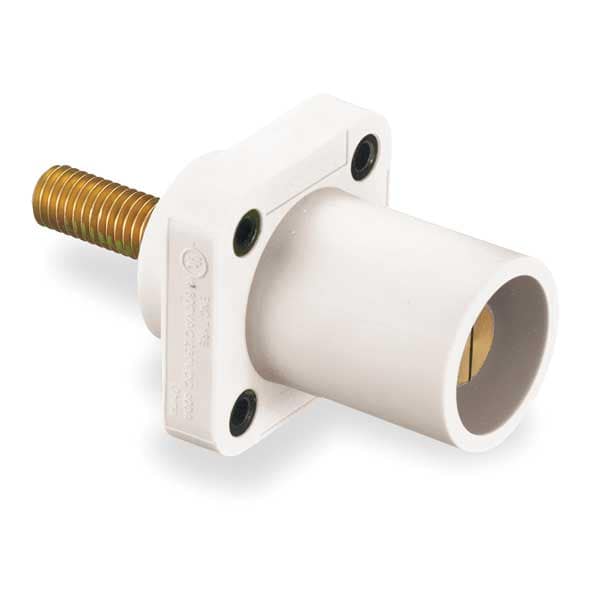

Hubbell Wiring Device-Kellems Receptacle, 3R, 4X, 12K, Stud, White HBLMRSW - main

Receptacle, 3R, 4X, 12K, Stud, White

  • Mfr # HBLMRSW

  • Zoro # G1222252

product price:  $48.26
/ea

Key Features

Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HBLMRSW
Zoro #
G1222252
UPC #
783585113050
Country of Origin
China

Dimensions

Minimum Wire Size
4 AWG
Maximum Wire Size
4/0 AWG
Overall Width
2.2 in
Overall Length
4.15 in
Wire Size
#4 AWG to #4/0 AWG
Display Size
Standard Sized Product

Details

Item
Receptacle
Type
Receptacle
Series
16
Terminal Connection
Threaded Stud
Male/Female
Male
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
NEMA Rating
12K, 3R, 4X
Color
White
Conductor Material
Brass
Mounting
Panel
Material
Thermoplastic Elastomer
Single Pole Device Style
Taper Nose
Amps AC/DC
400AC/DC
Standards
ANSI/NFPA 70, cUL Listed, National Electric Code (NEC), UL Enclosure Types 3R, 4X, 12, UL Listed
Amps AC
400 A
NEMA Enclosure Rating
12, 3R, 4X
End Type
Taper Nose
Housing Material
Thermoplastic Elastomer
Connection Orientation
Straight
Includes Mounting Hardware
Yes
Compatible with Series
16
Flange Shape
Square
Mounting Style
Through Hole Mounting
Housing Color
White
Terminal Connection Type
Double Set Screw
For Location
Indoor
UL 94 Flammability Rating
HB
Gender
Male
Contact Material
Brass
Phase
Single
Material - Mounting Hardware
Screw Mounting
Performance
Electrical - Amperage Rating - 400A Maximum Electrical - Voltage Ratings - 600V AC Maximum 250V DC Maximum Environmental - Flammability - HB per UL94 or CSA 22.2. 0.17 Mechanical - Product Identification - Ratings are a permanent part of device Mechanical - Terminal Accommodation - #4 to 4/0 AWG
Connectivity
Screw Terminals
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Amperage Rating
400 A
Style
Stud Type, Through Hole Mounting, Male
Voltage Rating Description
600V AC/DC
Number Of Poles
1-Pole
Application
High Ampacity Connections
Wattage
240000
Industry Standard(s)
National Electric Code (NEC), ANSI/NFPA 70 UL and cUL Listed UL Enclosure Types 3R, 4X, 12
Current / Amperage Rating
400 A
Item Type
Flanged Single

Description

Hubbell Wiring Device–Kellems offers a full line of innovative, high quality, Series 15 and Series 16 single pole plugs, receptacles and accessories for the most demanding environments. Single pole devices are the right choice for supplying temporary electrical power distribution for entertainment, theme parks, carnival equipment, concerts, movie making and numerous other applications requiring temporary power. Single pole devices have been designed with ease of assembly and disassembly in mind, no special tools are required. A high strength non-conductive retaining screw is all that is needed to securely lock the contacts to the insulated sleeve.
• Industrial Grade
• Male Receptacle
• 300/400A 600V AC/DC
