  6. Straight Blade Plug, 18-20P, 20 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded

This item is Discontinued.

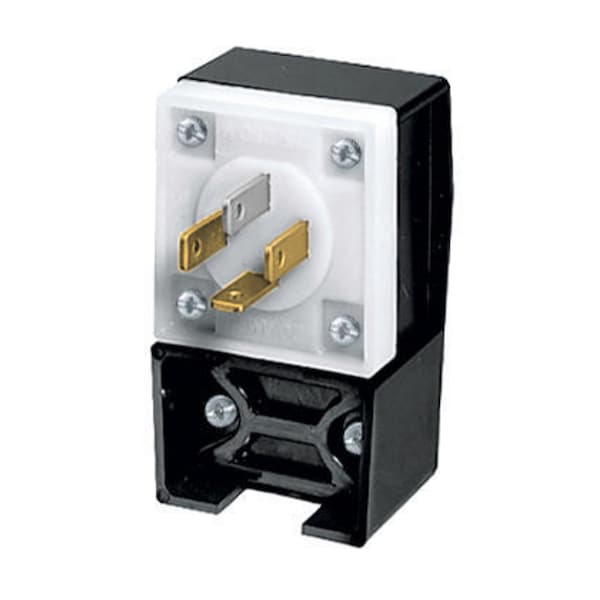

Hubbell Wiring Device-Kellems Straight Blade Plug, 18-20P, 20 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded HBL7251C

Straight Blade Plug, 18-20P, 20 A, 120/208V AC, 4 Pole, Screw Terminals, Non-Grounded (Discontinued)

  • Mfr # HBL7251C
  • Zoro # G100702320
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL7251C
Zoro #
G100702320
UPC #
783585013282
Country of Origin
United States

Dimensions

For Maximum Cable Diameter
0.775 in
For Minimum Cable Diameter
0.39 in
Cord Size
.390"-.775" (9.9-19.7); .390"-.775"(9.9-19. 7); .390"-.775"(9.9-19.7)

Details

Item
Straight Blade Plug
NEMA Plug Configuration
18-20P
Current Rating
20 A
Voltage Rating
120/208V AC
Phase
Three
Number of Poles
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Angled
Grounding
Non-Grounded
Housing Color
Black
IP Rating
IP20
Standards
UL 498
HP
2
Number of Wires
4
Special Features
Certified for current interrupting at full rated current
Temp. Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Dielectric Strength
Withstands 2,000V minimum
Terminal Screw Material
#8-32 Brass /Ni plated for neutral
Box Terminals Material
Copper
Retainer Material
Polycarbonate
Weight (Lbs.)
0.4
Operating Temp.
Maximum continuous 75°C, minimum -40°C (w/o impact).
Contact Blades Material
.075" Brass
Flammability
UL 94 V-2
Body Style
Angle
Cord Clamp Material
Nylon
Blade Holder Material
Nylon
Housing Material
Nylon

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Male Plug, HeavyDuty, Industrial/Commercial Grade, Angled, 4-Pole 4-Wire Non-Grounding,20A 3 Phase 120/208V AC, 18-20P, Black, Single Pack,
