  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

This item is Discontinued.

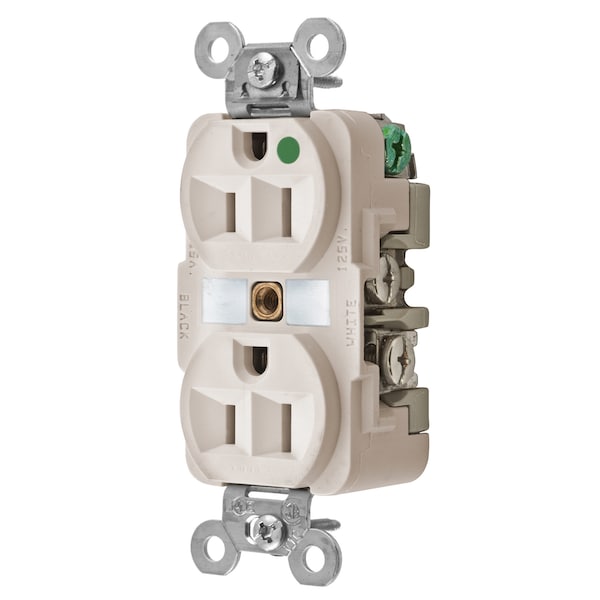

Hubbell Wiring Device-Kellems Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded HBL8200LA

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded (Discontinued)

  • Mfr # HBL8200LA
  • Zoro # G700622592
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HBL8200LA
Zoro #
G700622592
UPC #
783585147277
Country of Origin
United States

Dimensions

Height
1.19 in
Width
1.65 in
Display Size
Standard Sized Product
Dimensions
3.28 in x 1.65 in x 1.19 in
Wire Size
#14 AWG to #10 AWG
Length
3.28 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Light Almond
Mount Type
Flush
IP Rating
IP20
Standards
CSA Certified, NEMA WD-6, UL Listed
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Type
Receptacle
Color
Light Almond
Application
Extra Heavy Duty Hospital Grade
Operating Temperature
Maximum continuous 75°C and minimum -40°C without Impact
Amperage
15 A
Brand
Hubbell Wiring Device-Kellems
Nema Rating
5-15R
Mounting Hardware Material
Screw Mounting
Style
thermoplastic polyester face
Material
Thermoplastic
Connectivity
Back and Side Wired Screw Terminals
Dielectric Strength
Withstands 2,000V minimum
Environmental Rating
Indoor Dry Unless Protected By Additional Means
Carton Quantity
10
Maximum Horsepower
0.5
Series
Hospital Grade
Wattage
1875 W
Number Of Wires
3-Wire
Mounting Screw Material
Stainless Steel
Flammability
UL 94 V0 and UL 94-5 VA., UL 94 V-0
Rating
15A, 125V
Poles and Wires
2 Pole, 3-Wire Grounding
Horsepower
0.5
Certification
UL Listed, File E2186, Guide RTRT Fed Spec WC596G, Hospital Grade Meets NEMA WD-1 Heavy Duty and WD-6 requirements Listed to UL Standard 498, Certified to CSA, C22.2, No. 42 where applicable
Receptacle Style
Duplex
Device Color
Light Almond
Receptacle Grade
Hospital Grade
Base Material
Reinforced PET
Operating Temperatures
Maximum continuous 75°C; minimum -40°C (w/o impact)
Other Available Colors
Ivory, Gray, Red, White, Light Almond
Terminal Accommodation
#14-#10 AWG copper stranded or solid conductor only
Temperature Rise
Max 30°C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%..
Auto Ground Clip Material
Stainless Steel
Dielectric Voltage
Withstands 2,000V minimum
Face Style
Finder Groove
Terminal Identification
Terminals identified in accordance with UL 498 and CSA
Ground Screw Material
#10-32 Silicon Bronze (Green)
Terminal Screw Material
#10-32 Silicon Bronze (Ni plate if neutral)
Product Type
Flush-receptacles
Current Interrupting
Certified for current interrupting at full rated current
Face Shape
Traditional
Enhancement
Illuminated Face
Power Contacts Material
.037" (.9) Brass - Ni Plated
Mounting Strap Material
.050" (1.3) Brass-Ni Plated
Top Material
Impact Modified PBT
Standard
NEMA
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - Withstands 2,000V minimum Environmental - Flammability - UL 94 V-0 Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact) Mechanical - Product Identification - Ratings are a permanent part of the device Mechanical - Terminal Accommodation - #14-#10 AWG stranded or solid copper wire only Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Industry Standard(s)
CSA Certified, C22.2, No. 42 File 285 Fed. Spec. W-C-596 NEMA® WD-6 Compliant UL Listed to UL498 File No. E2186
Horsepower - Maximum
0.5
OEM Brand Name
Hubbell Wiring Device-Kellems
Material - Mounting Hardware
Screw Mounting

Description

Hubbell Wiring Device Kellems, Straight Blade Devices, Receptacles,Duplex, Hospital Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, LightAlmond
