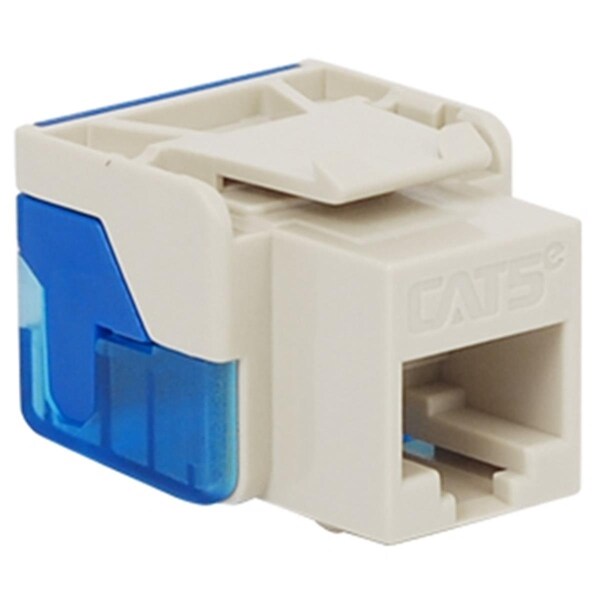

  6. ICC IC1078E5WH Cat 5e EZ Modular Connector; White

This item is Discontinued.

Icc ICC IC1078E5WH Cat 5e EZ Modular Connector; White IC1078E5WH

ICC IC1078E5WH Cat 5e EZ Modular Connector; White (Discontinued)

  • Mfr # IC1078E5WH
  • Zoro # G303792722
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
IC1078E5WH
Zoro #
G303792722
UPC #
-
Country of Origin
China

Details

Item
Keystone Jacks
Cable Jacket Color
White
Standards
TIA-568A/B, UL, CE; TAA Compliant
Performance Category
CAT5e
Operating Temp. Range
-40° to 150° F
Green Environmental Attribute
Environmentally Friendly
Features
Crosstalk Protection, Far End Cross Talk (FEXT), Flame Retardant, Near End Cross Talk (NEXT), PoE++
Color
Clear Blue, White
Material
Acrylonitrile Butadiene Styrene (ABS), Phosphor Bronze Alloy, Plastic, Polycarbonate
Includes
Cat 5e, EZ, Modular Connector, White, (1) Wire Cap
Mount Type
Surface Mount
Contact Plating
Gold, Phosphor Bronze
Connector Details
(1) RJ-45 Network Female

Description

Features
  • CAT 5e rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth.
  • PCB technology provides maximum performance and superior signal quality.
  • Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
  • Exceeds Category 5e industry performance requirements.
  • Terminate with 110 punch down tool ICACSPDT00.
  • Designed with rear 110 IDC reducing termination time.
  • Includes an integrated TIA-568A/B color wiring diagram.
  • Backwards compatible to all lower rated category components.
  • Compatible with all ICC faceplate, inserts, surface mount boxes, and blank patch panels.
  • Compatible with all ICC furniture faceplate, bezels, and surface mount boxes.
  • For use with ICC Category 5e patch cords.
  • Installation instructions included.
  • Exceeds ANSI/TIA-568-C requirements for permanent, channel link and component performances.
  • UL 1863 Compliant.
  • Color - White.
CAT 5e Module
Electrical
  • Current rating: 1.5 amps.
  • Insulation resistance: 500 mohms min.
  • Contact resistance: 20 mohms max.
  • DC resistance: 0.1 ohm max.
  • Transmission performance exceeds Category 5e connecting hardware requirements specified in ANSI/TIA-568-C.2 when used with compatible horizontal cable.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
