This item is Discontinued.

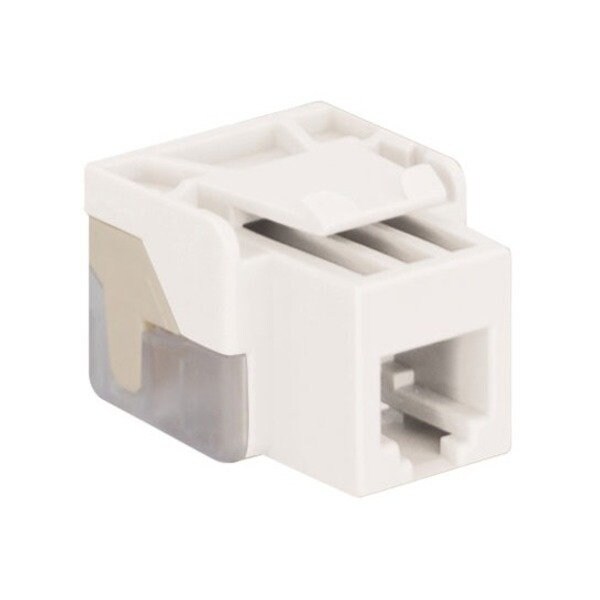

Icc The EZ voice modular jacks44 RJ11 keystone jacks 6position 6conductor 406P6C41 IC1076V0WH

This item is Discontinued.

Icc

The EZ voice modular jacks44 RJ11 keystone jacks 6position 6conductor 406P6C41 (Discontinued)

Mfr # IC1076V0WH
Zoro # G204037717
Country of Origin China
Category Voice & Data Jacks
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
IC1076V0WH
Zoro #
G204037717
UPC #
-
Country of Origin
China

Details

Item
Keystone Jacks
Material
PC, UL 94V-0
Color
Clear
For Use With
22-24 AWG Solid Wire
Voltage
150V
Features
Environmentally Friendly
Standards
UL
Connector Type
6P6C
Type
EZ
Connectivity
Insulation Displacement
Insulation Resistance
Greater than 10 mohms
Gold Plating
1.27 micron/50 micro inch
Contact Force
5 lb
Housing
ABS
Retention Force
20 lb
Current Rating
1.5 A
Contact
Phosphor Bronze Alloy Plated
Dielectric Withstanding Voltage
1000V RMS

Description

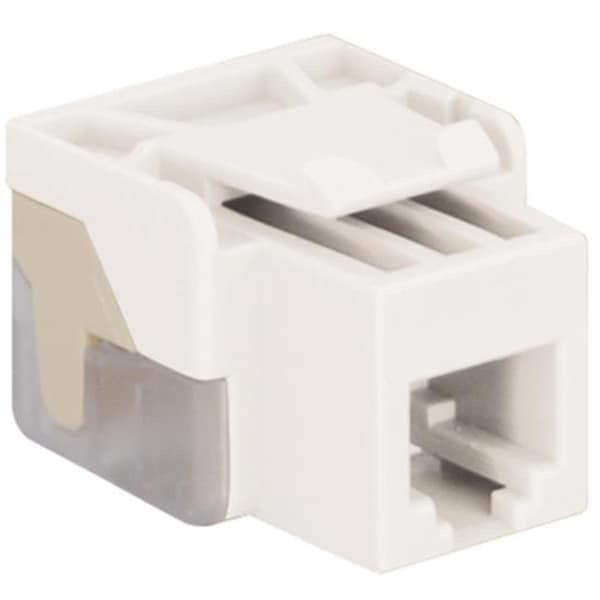

The EZ® voice modular jacks, RJ-11 keystone jacks 6-position 6-conductor (6P6C), is designed for business system applications. The modular jacks utilizes IDC termination, accepts 22-24 AWG solid wire. Termination can be done using 110 punch down tool, or by using the Jack Easy termination tool for fast and easy termination. For use with applications: Apple Talk, Voice, and Arcnet. Compatible with RJ11/14 and 25 keystone jacks and plugs.

Features
  • Designed for all voice connectivity applications.
  • Lead frame technology provides maximum performance and superior signal quality.
  • Terminate with 110 punch down tool ICACSPDT00.
  • Includes an integrated USOC/UTP color wiring diagram.
  • Compatible with all ICC faceplate, Decorex inserts, surface mount boxes, and blank patch panels.
  • Works with ICC telephone line cords.
  • Installation instructions included.
  • UL listed.
  • Color - White.
RJ-11 Voice Module
Electrical
  • Current rating: 1.5 amps max.
  • Voltage rating: 150 volts alternating.
  • Dielectric withstanding voltage: 1000 volts rms, 60Hz.
  • Insulation resistance:>10 mohms.

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
