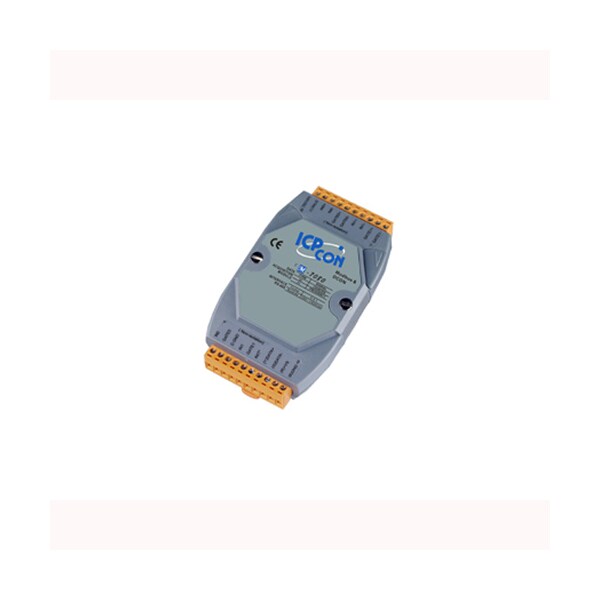

RS-485 Remote I/O Module, M-7080 (Discontinued)

Name: RS-485 Remote I/O Module, M-7080
Brand: Icp Das
SKU: G200491469
Price: 359.99 USD
Availability: Discontinued

Mfr # M-7080

Zoro # G200491469

Country of Origin Taiwan, Province of China

Category Programmable Logic Controllers

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: M-7080
Zoro #: G200491469
UPC #: -
Country of Origin: Taiwan, Province of China
Output Type: Source, Open-Collector
Channels (Digital Output): 2 independent 32-bit counters, counter 0&1
Channels (Digital Input): 2
Gate Time: 1.0 or 0.1sec, programmable
Output Voltage: 30V max.
Non-Isolated Input Level (Programmable): Logic level 0: 0 to +5V (default= 0.8V)
Output Current: 30mA max
Interface: RS-485
Isolation Voltage: 3750Vrms
Operating temperature: -25 to 75°C
Counter Rreset Value: programmable
Humidity: 5 to 95%, non-condensing
Isolated Input Level: Logic level 0:+1V max.
1 LED: as Power/ Communication indicator
Maximum Count: 32bit (4,294,967,295)
Storage temperature: -40 to 85°C
Support Modbus and DCON Protocol: Yes
Power Consumption: 2.0W (M-7080B-G) / 2.2W (M-7080BD-G)
Baud Rate: 1200 ~ 115200bps
Programmable Digital Noise Filter: 2us to 65ms
Input Frequency: 1Hz to 100KHz max.
Interface Format: N, 8, 1
Built-in Virtual Battery Back Up: for Counter Value
5-digit readout: Channel 0 or Channel 1 (for M-7080BD-G)
Input Type: Isolated or non-isolated
Input Voltage Range: 10~30VDC for M-7080 and ; M-7080D, 24~30VDC for M-7080B and M-7080BD
Alarming: alarm on counter 0 or counter 0 & 1, programmable

Modbus Version, 2 Channel Counter / Frequency input module
