This item is Discontinued.

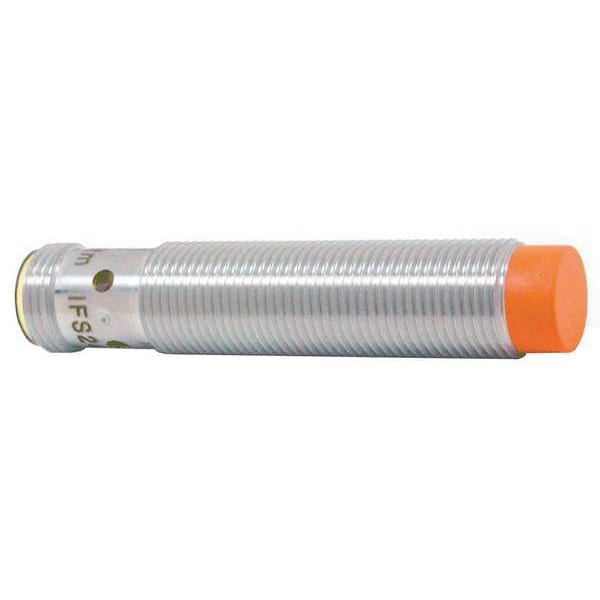

Ifm Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded IFS263

This item is Discontinued.

Ifm

Cylindrical, Inductive Proximity Sensor, 12 mm Dia., Brass, M12, 3 Wires, Unshielded (Discontinued)

Mfr # IFS263
Zoro # G0527935
Country of Origin United States
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
IFS263
Zoro #
G0527935
UPC #
-
Country of Origin
United States
Item
Proximity Sensor
Style
Cylindrical, Inductive
Proximity Sensing Method
Inductive
Body Material
Brass
Proximity Sensor Power Requirement
10 to 30V DC
Electrical Connection
M12
Output Circuit Type
NPN
Output Circuit Number of Wires
3
Sensing Face Shielding
Unshielded
Sensing Distance - Maximum
7 mm
AC Voltage Rating
Not Rated
DC Voltage Rating
10-30V DC
Output Circuit Contact Form
NC
Standards
EN 61000-4-2 ESD, EN 55011, EN 60068-2-14 Na, EN 60068-2-27, EN 60068-2-27 Ea, EN 60068-2-52 Kb, EN 60068-2-6 FC, EN 61000-4-3 HF Radiated, EN 61000-4-4 Burst, EN 61000-4-6 HF Conducted, UL E174191, UL A001
Proximity Sensor Electrical Connection
4 Pin M12 Connector
Proximity Sensor Operating Frequency
700 Hz
IP Rating
IP65, IP66, IP67, IP68, IP69K
Max. Current Load
100mA
Includes
(2) Lock Nuts
Description/Special Features
Overload And Short Protection
Operating Temp. Range
-40 Degrees to 185 Degrees F
Body Finish
Bronze Coated
Output Circuit Current - Maximum
100 mA
Features
Safe Detection
Electrical Installation Type
Direct Connector
Switching Frequency
700 Hz
Includes Indicator Lights
Indicator Lights Included
Operating Temperature - Maximum
185 Degrees F
Sensing Method
Inductive
Number of Pins
4
Output Circuit Voltage - Maximum
2.5 V DC
Operating Temperature - Minimum
-40 Degrees F
Container Type
Cylindrical
Sensor Body Style
Cylindrical

Dimensions

Overall Diameter
12 mm
Length
45 mm
Overall Height
45 mm
Fits Chest Size
Safe Detection

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12 mm, Proximity Sensor Power Requirement 10 to 30V DC, Unshielded, Proximity Sensor Operating Frequency 700 Hz, Proximity Sensor Output Circuit Type 3 Wire NPN, Max. Detecting Distance 7 mm, Proximity Sensor Electrical Connection 4 Pin M12 Connector, Output Mode NC, IP Rating IP65, IP66, IP67, IP68, IP69K, Case Material Brass White Bronze Coated, Length 45 mm, Operating Temp. Range -40 Degrees to 185 Degrees F, Max. Current Load 100mA
