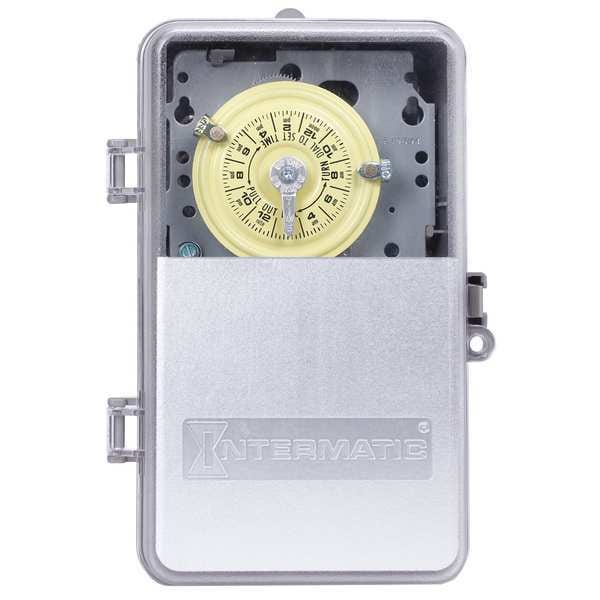

Electromechanical Timer, 24-Hour, SPST
Mfr # T101PCD82
Zoro # G6803054
product price:Â $99.29
/ea
Free Shipping & Returns
Key Features
Voltage
120V AC
Operation Mode
25 hour
Amps
40 A
Time Minimum Setting
1 hr.
Enclosure Type
Polycarbonate
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
T101PCD82
Zoro #
G6803054
UPC #
078275047839
Country of Origin
Mexico
Dimensions
Depth
4 in
Height
11 1/2 in
Width
7 1/8 in
Wire Size Min
#14 AWG
Product Width
6 1/2 in; 165.1 mm
Product Height
10 in; 254 mm
Knockout Dimensions Bottom
(2) combination 1/2" - 3/4"
Wire Size Max
#8 AWG
Knockout Dimensions Back
(1) combination 1/2" - 3/4"
Product Depth
4 in; 101.6 mm
Product Height (in)
10
Product Width (in)
6.5
Product Depth (in)
4
Overall Height
10 in
Overall Depth
4 in
Overall Width
6 1/2 in
Description
Electromechanical Timer, 24-Hour, Number of Poles 1, Contact Form SPST, Voltage 120V AC, Amps 40 A, Contact HP @ 120V 2 hp, Day Skipper No, Enclosure Type Polycarbonate, Finish Gray, NEMA Rating 3R, Min. Time Setting 1 hr, Max. Time Setting 23 hr, Max. On/Off Cycles 12, Width 7 1/8 in, Depth 4 in, Height 11 1/2 in, Number of Trippers Included 2, Extra Trippers Mfr. No. 156T1978A, Operating Temp. -40 Degrees to 130 Degrees F, Description/Special Features Clear Plastic Door, Mount Surface
