Intermatic

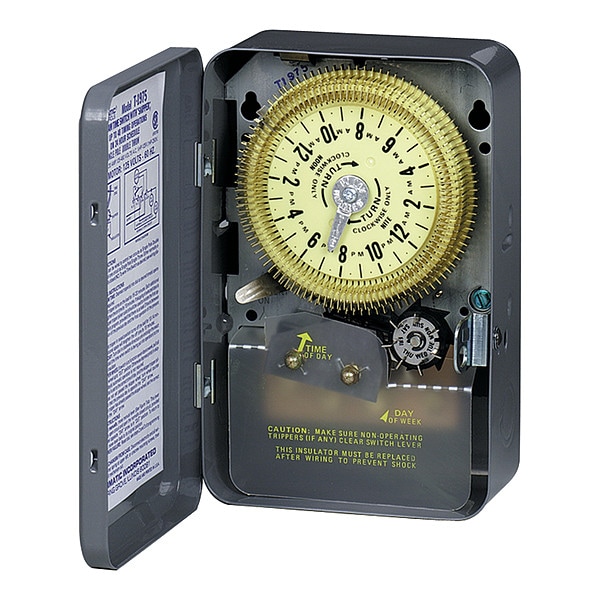

Electromechanical Timer, Multi Operation

original price: $216.91
9% off
new price: $197.19
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 120V AC
  • Amps 20 A
  • Enclosure Type STEEL
  • Min. Time Setting 15 min
  • Max. Time Setting 23-3/4 hr
See all product information

Product Information

Dimensions

Width 5 in
Height 7 3/4 in
Depth 3 in
Wire Size Max #12 AWG
Product Height 7.875 in; 200 mm
Product Width 5.125 in; 130.2 mm
Product Depth 3.4375 in; 87.3 mm
Wire Size Min #14 AWG
Product Height (in) 7.875
Product Depth (in) 3.4375
Product Width (in) 5.125

Details

Item Electromechanical Timer
Voltage 120V AC
Amps 20 A
Enclosure Type STEEL
Min. Time Setting 15 min
Max. Time Setting 23-3/4 hr
Contact Form SPDT
Max. On/Off Cycles 48
Contact HP @ 120V 1/2 hp
NEMA Rating 1
Description/Special Features Manual On/Off Override does not Interfere with Program
Extra Trippers 2E132
Day Skipper Yes
Nominal Max. Time Setting 24 hr
Number of Poles 1
Type 24-Hour, Multioperation
Time Setting Range 15 min. to 23-3/4 hr.
Operating Temp. -40 to +130
Contact HP @ 240V 1 hp
Mount Wall
Number of Trippers Included 96
Operation Mode 24 hour
Maximum On Off Operations 48
Resistive Load Ratings Ranges 20 A, 125-480 VAC, 60 Hz
Minimum On Off Time 15 min
Applications Timing/Scheduling ON/OFF; Indoor Lighting Control
Operating Temperature Min -40°C
Wiring Option Terminals
Solutions Machinery & Pumps; Panel Integrators
Input Voltage Ranges 125 VAC, 60 Hz
Market Commercial; Industrial
Power Consumption Max W 3 W
Packaging Applications Poultry Feeders; Filters; Heaters; Blowers; Dairy Equipment; Foggers; Fans; Lighting; Electrical Pumps; Motors
Motor Load Ratings 1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
Switch Type SPDT
Skipper Wheel Operation Mode 24 Hour
Resistive Load Ratings 20 A, 125 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz; 20 A, 480 VAC, 60 Hz
Number Of Circuits 1
Has Manual Override CVL Yes
Operating Temperature Max 130°C
CSA Certification cCSAus
Minimum ON/OFF Times 15 min
Maximum Power Consumption (W) 3 W
Operating Temperature Min (°F) -40
Input Voltage Range(s) 125 VAC, 60 Hz
Skipper Wheel 24 hour
Motor Load Ratings Ranges 1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
Has Manual Override Yes
Resistive 20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz, 20 A, 480 VAC, 60 Hz
Maximum ON/OFF Operations 48
Operating Temperature Max (°F) 130
Features Provides up to 96 operations (48 ON/48 OFF) every 24 hours; Models with skipper wheel allow for operations to be omitted on selected days of the week; 15-minute intervals; Captive trippers slide in and out of dial for fast, accurate setting
Operating Temperature Min (°F) -40
Operating Temperature Max (°F) 130

Description

Electromechanical Timer, 24-Hour, Multioperation, Number of Poles 1, Contact Form SPDT, Voltage 120V AC, Amps 20 A, Contact HP @ 120V 1/2 hp, Contact HP @ 240V 1 hp, Day Skipper Yes, Enclosure Type Steel, NEMA Rating 1, Min. Time Setting 15 min, Max. Time Setting 23-3/4 hr, Max. On/Off Cycles 48, Width 5 in, Depth 3 in, Height 7 3/4 in, Number of Trippers Included 96, Extra Trippers 2E132, Operating Temp. -40 to +130
