Intermatic

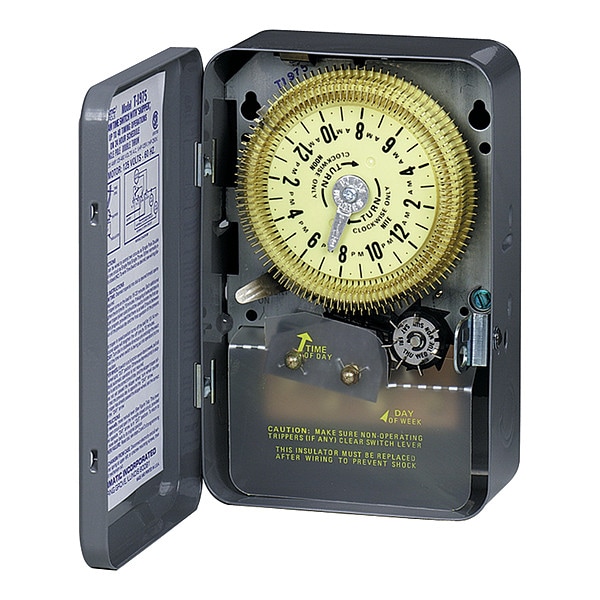

Electromechanical Timer, Multi Operation

product price: $201.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 208 to 277V AC
  • Amps 20 A
  • Enclosure Type STEEL
  • Min. Time Setting 15 min
  • Max. Time Setting 23-3/4 hr
See all product information

Product Information

Dimensions

Depth 3 in
Height 7 3/4 in
Width 5 in
Product Width 5.125 in; 130.2 mm
Wire Size Max #12 AWG
Wire Size Min #14 AWG
Product Height 7.875 in; 200 mm
Product Depth 3.4375 in; 87.3 mm
Product Depth (in) 3.4375
Product Width (in) 5.125
Product Height (in) 7.875

Details

Item Electromechanical Timer
Voltage 208 to 277V AC
Amps 20 A
Enclosure Type STEEL
Min. Time Setting 15 min
Max. Time Setting 23-3/4 hr
Contact Form SPDT
Max. On/Off Cycles 48
Operating Temp. -40 to +130
Nominal Max. Time Setting 24 hr
Contact HP @ 120V 1/2 hp
Type 24-Hour, Multioperation
Contact HP @ 240V 1 hp
Number of Poles 1
NEMA Rating 1
Mount Hole Wall
Extra Trippers 2E132
Day Skipper Yes
Time Setting Range 15 min. to 23-3/4 hr.
Number of Trippers Included 96
Description/Special Features Manual On/Off Override does not Interfere with Program
Motor Load Ratings 1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
Power Consumption Max W 3 W
Input Voltage Ranges 208-277 VAC, 60 Hz
CSA Certification cCSAus
Resistive Load Ratings 20 A, 125 VAC, 60 Hz; 20 A, 208 VAC, 60 Hz; 20 A, 240 VAC, 60 Hz; 20 A, 277 VAC, 60 Hz; 20 A, 480 VAC, 60 Hz
Minimum On Off Time 15 min
Switch Type SPDT
Applications Timing/Scheduling ON/OFF; Indoor Lighting Control
Maximum On Off Operations 48
Number Of Circuits 1
Operating Temperature Min -40°C
Market Commercial; Industrial
Operating Temperature Max 130°C
Solutions Machinery & Pumps; Panel Integrators
Has Manual Override CVL Yes
Resistive Load Ratings Ranges 20 A, 125-480 VAC, 60 Hz
Packaging Applications Poultry Feeders; Filters; Heaters; Blowers; Dairy Equipment; Foggers; Fans; Lighting; Electrical Pumps; Motors
Skipper Wheel Operation Mode 24 Hour
Wiring Option Terminals
Operation Mode 24 hour
Features Provides up to 96 operations (48 ON/48 OFF) every 24 hours; Models with skipper wheel allow for operations to be omitted on selected days of the week; 15-minute intervals; Captive trippers slide in and out of dial for fast, accurate setting
Skipper Wheel 24 hour
Input Voltage Range(s) 208-277 VAC, 60 Hz
Operating Temperature Max (°F) 130
Maximum ON/OFF Operations 48
Operating Temperature Min (°F) -40
Maximum Power Consumption (W) 3 W
Motor Load Ratings Ranges 1/2 HP, 125 VAC, 60 Hz; 1 HP, 250 VAC, 60 Hz
Minimum ON/OFF Times 15 min
Has Manual Override Yes
Resistive 20 A, 125 VAC, 60 Hz, 20 A, 208 VAC, 60 Hz, 20 A, 240 VAC, 60 Hz, 20 A, 277 VAC, 60 Hz, 20 A, 480 VAC, 60 Hz

Description

Electromechanical Timer, 24-Hour, Multioperation, Number of Poles 1, Contact Form SPDT, Voltage 208 to 277V AC, Amps 20 A, Contact HP @ 120V 1/2 hp, Contact HP @ 240V 1 hp, Day Skipper Yes, Enclosure Type Steel, NEMA Rating 1, Min. Time Setting 15 min, Max. Time Setting 23-3/4 hr, Max. On/Off Cycles 48, Width 5 in, Depth 3 in, Height 7 3/4 in, Number of Trippers Included 96, Extra Trippers 2E132, Operating Temp. -40 to +130
