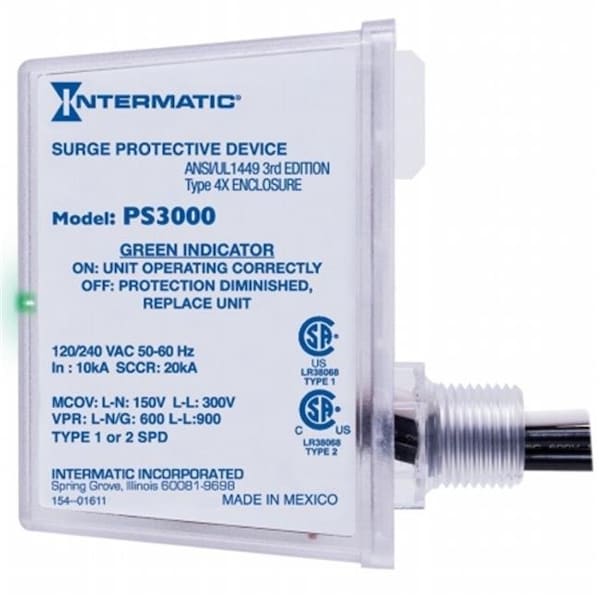

Intermatic Usd Surge Protection Device, 120/240V, 3 Wires, 50 kA PS3000 - main

Surge Protection Device, 120/240V, 3 Wires, 50 kA

  • Mfr # PS3000

  • Zoro # G603983257

product price: $153.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/240V
Voltage Protection Rating
1200V (L-L), 700V (L1-N/G)
Number of Wires
3 Wires
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PS3000
Zoro #
G603983257
UPC #
-
Country of Origin
United States

Dimensions

Depth
3 7/8 in
Width
1 5/8 in
Wire Lead Length
18 in; 457.2 mm

Details

Item
Surge Protection Device
Voltage
120/240V
Voltage Protection Rating
1200V (L-L), 700V (L1-N/G)
Number of Wires
3 Wires
Max. Surge Current per Mode
50 kA
Max. Surge Current per Phase
50 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
100kA
Enclosure NEMA Rating
NEMA 4X
Features
TPMOV Surge Protection Technology; UL Listed to ANSI/UL 1449, 5th edition; 120/240 VAC single-phase SPD for use on a variety of pool equipment; Green LED protection indicator; Type 4X watertight and UV resistant plastic enclosure; Three modes of protection; Includes (3) 18", #10 AWG tinned copper leads; 3-year warranty; $7,500 connected equipment warranty
Wiring Option
Wire leads
Solutions
Pool & Spa
Operating Temperature Max
158°C
Units Per Pallet
1120
Surge Protection Technology
TPMOV®
LED Surge Protection Indicator
Green
Operating Temperature Min
-40°C
Surge Protection Types
1; 2
Maximum Continuous Operating Voltage LL
300
Packaging Applications
Automation Systems; Sanitizers; Pumps; Heaters; All Pool/Spa Equipment Powered by the Electrical Service Panel; Spa Equipment
Market
Residential
Maximum Continuous Operating Voltage LN
150
UL Certification
cULus
Voltage Protection Rating LL
1200
Applications
Distribution Panel; Surge Protection
Modes Of Protection
3
Voltage Protection Rating L1 NG
700
UL Standard
ANSI/UL 1449 5th Edition
Operating Temperature Min (°F)
-40
Maximum Continuous Operating Voltage (L-N)
150
Surge Protection LED Indicator
Green
Maximum Continuous Operating Voltage (L-L)
300
Operating Temperature Max (°F)
158
Surge Protection Type
1, 2
Phase
1
Enclosure Material
plastic
Max. Continuing Operating Voltage
120/240 VAC
Includes
(3) 18, #10 AWG tinned copper leads
Wire Gauge
10 AWG

Description

Features
  • Green LED protection indicator
  • Type 4x enclosure
  • Three modes of protection
  • 10 gauge leads
  • Perfect add-on to your pool

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
