Jet

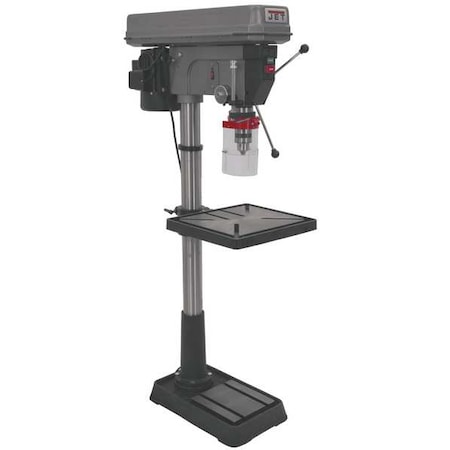

Floor Drill Press, Belt Drive, 1 1/2 hp, 115/230 V, 20 in Swing, 12 Speed

Jet Floor Drill Press, Belt Drive, 1 1/2 hp, 115/230 V, 20 in Swing, 12 Speed 354170
Tap to zoom
Hover or click to zoom
$1,499.00
  • Drill Press Product Grouping: General Purpose Drill Presses
  • Item: Floor Drill Press
  • Drive Type: Belt
See full product details
Item requires special delivery charges. A $25.00 per item surcharge will be applied.
Total: $1,499.00

Jet #354170 Specifications

  • Drill Press Product Grouping: General Purpose Drill Presses
  • Item: Floor Drill Press
  • Drive Type: Belt
  • Swing: 20 in
  • Voltage: 115/230
  • Motor HP: 1 1/2 hp
  • Chuck Size: 3/4 in
  • Number of Speeds: 12
  • Capacity Steel: 3/4 in
  • Spindle Speed: 150 to 4200 rpm
  • Corded/Banded: Corded
  • Table Work Surface: 18-1/2 in x 16 in
  • Column Dia.: 3 3/8 in
  • Drilling Capacity Wood: Not Specified
  • Hz: 60
  • Power Down Feed Included: No
  • Overall Width: 26 1/2 in
  • Includes: Chuck with Key
  • Spindle Travel: 4 5/8 in
  • Spindle to Table: 29 1/8 in
  • Overall Height: 58 in
  • Spindle Taper: MT3
  • Corded/Cordless: Corded
  • Quill Dia.: 2 7/16 in
  • Table Slot Size: 1/2 in
  • Tilting Angle: 45 Degrees
  • Max. Spindle To Base: 46 3/4 in
  • Overall Depth: 13 in
  • Number of T-Slots: 6
  • Base Size: 13-3/4 in x 22-3/4 in
  • Phase: 1
  • Capacity Cast Iron: 1 in
  • Drilling Capacity in Cast Iron: 1 in
  • Table Slot Width: 1/2 in
  • Drilling Capacity in Stainless Steel: 5/8 in
  • Base Width: 22 3/4 in
  • Current: 18/9 A
  • Table Load Capacity: 80 lb
  • Power Source: Corded
  • Speed Adjustment: Step Pulley
  • Horsepower: 1 1/2 hp
  • Table Width: 16 in
  • Table Tilt: 45 Degrees
  • Drilling Capacity in Steel: 5/8 in
  • Motor Voltage: 115/230V AC ; Single-Phase
  • Chuck Capacity: 3/4 in
  • Speed Control: Fixed
  • Speed Range: 150 to 4,200 RPM
  • Maximum Overall Height: 67 in
  • Spindle Speed Range: 150 RPM - 4,200 RPM
  • Maximum Spindle-to-Base Height: 46 3/4 in
  • Table Slot: Yes
  • Primary Material Application: Metal
  • Drill Press Application: Drilling
  • Drilling Capacity in Wood: 3/4 in
  • Maximum Spindle-to-Table Height: 29 1/8 in
  • Guard Included: Yes
  • Column Diameter: 3 3/8 in
  • Quill Diameter: 2 7/16 in
  • Chuck Style: Keyed
  • Drill Spindle Travel: 4 in - 5 in
  • Coolant System: No
  • Base Length: 13 3/4 in
  • Maximum Spindle Speed: 4,200 RPM
  • Overall Length: 33 1/2 in
  • Table Shape: Rectangular
  • Drill Press Type: Floor Stand
  • Table Length: 18 1/2 in
  • Minimum Spindle Speed: 150 RPM
  • Radial Arm: No
  • Number of Spindle Speeds: 12
  • Spindle-to-Column Distance: 10 in
  • Nominal Voltage: 115/230V AC
  • Country of Origin (subject to change): China

Description

General Purpose Drill Presses, Floor Drill Press, Drive Type Belt, Swing 20 in, Spindle Taper 3MT, Motor HP 1 1/2 hp, Capacity Steel 3/4 in, Capacity Cast Iron 1 in, Drilling Capacity Wood Not Specified, Includes Chuck with Key, Power Down Feed Included No, Voltage 115/230, Number of Speeds 12, Chuck Size 3/4 in, Spindle Speed 150 to 4200 rpm, Spindle Travel 4 5/8 in, Base Size 13-3/4 in x 22-3/4 in, Table Work Surface 18-1/2 in x 16 in, Hz 60, Phase 1, Number of T-Slots 6
