Shop JET

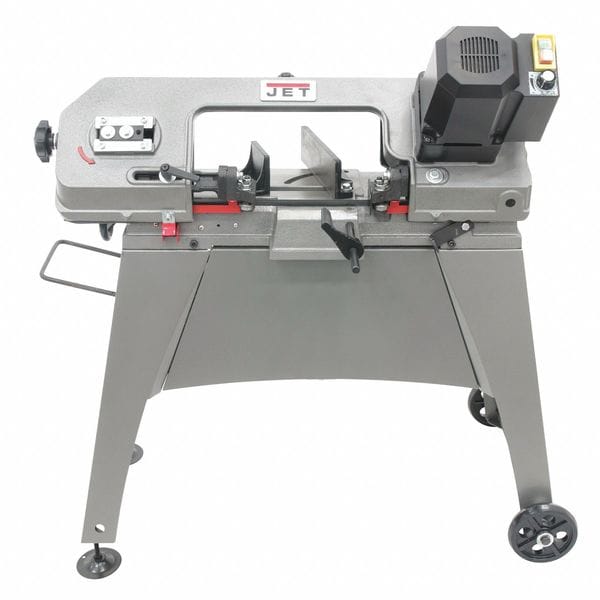

Band Saw, 5" x 5-3/4" Rectangle, 5" Round, 5 in Square, 115/230V AC V, 0.5 hp HP

  • Mfr # HVBS-56V
  • Zoro # G3939719
product price:
$
1,057.99
/ea
Additional $130.00 delivery surcharge applies per item.
See details

Key Features

Cutting Capacity Rectangle
5" x 5-3/4"
Cutting Capacity Round
5"
Cutting Capacity Square
5 in
Voltage
115/230V AC
HP
0.5 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
HVBS-56V
Zoro #
G3939719
UPC #
731325701920
Country of Origin
Taiwan, Province of China

Dimensions

Max. Thickness of Cut
5-1/2"
Max. Blade Length
64 1/2 in
Overall Width
17 23/32 in
Table Dimensions
9 5/8 in x 9 1/2 in
Overall Height
41 11/32 in
Overall Depth
37 in
Min. Blade Length
64 in
Min. Blade Width
1/2 in
Blade Wheels Dia.
7.375 in
Blade Thickness
0.025 in
Max. Blade Width
1/2 in
Blade Length
64 1/2 in
Throat Depth - Vertical
5 in
Fits Chest Size
Adjustable Material Stop, Ball Bearing Supported Blade Wheel, CSA/CUS Certified, DC Brushless Motor with 3-Step Gear Transmission, Front Legs Feature Leveling Pads, Fully Adjustable Ball Bearing Blade Guides, Heavy Duty Casted Head, Improved Stand with Built In Shelf, Vertical Worktable, Wheels Come Standard

Details

Item
Band Saw
Cutting Capacity Rectangle
5" x 5-3/4"
Cutting Capacity Round
5"
Cutting Capacity Square
5 in
Voltage
115/230V AC
HP
0.5 hp
Speeds
80 to 230 fpm
Miter Capacity
0 Degrees to 45 Degrees Left, 0 Degrees to 45 Degrees Right
Includes
Stand, Wheels
Features
Adjustable Material Stop, Ball Bearing Supported Blade Wheel, CSA/CUS Certified, DC Brushless Motor with 3-Step Gear Transmission, Front Legs Feature Leveling Pads, Fully Adjustable Ball Bearing Blade Guides, Heavy Duty Casted Head, Improved Stand with Built In Shelf, Vertical Worktable, Wheels Come Standard
Corded/Banded
Corded
Amps AC
15.0 A
RPM
3600
Hz
60 Hz
Cutting Angle
45 Degrees to 90 Degrees
Corded/Cordless
Corded
Application
Metal and Wood
Phase
1
Band Saw Type
Combination Horizontal/Vertical
Rectangular Cutting Capacity - Horizontal
2 in x 6 in, 5 in x 5 3/4 in
Band Saw Operation
Manual
SFPM Range
80 to 230 SFPM
Number of Speed Settings
3
Miter Angle Range
45 Degrees , 90 Degrees
Round Cutting Capacity - Horizontal
5 in
Material Application
Metal, Wood
Current
15.0 A
Power Source
Corded
Variable Speed
Yes
Power Source - TS Only
Corded
Power Source - old
Corded

Description

Band Saw, Band Saw Type Combination Horizontal/Vertical, Band Saw Operation Manual, Voltage 115/230V AC, Phase 1, Rectangular Cutting Capacity - Horizontal 2 in x 6 in, 5 in x 5 3/4 in, Throat Depth - Vertical 5 in, Round Cutting Capacity - Horizontal 5 in, SFPM Range 80 to 230 SFPM, Miter Angle Range 45 Degrees , 90 Degrees , Number of Speed Settings 3, Material Application Metal, Wood, Blade Length 64 1/2 in, Max. Blade Width 1/2 in, Min. Blade Width 1/2 in, Cutting Capacity Square 5 in
