- Item

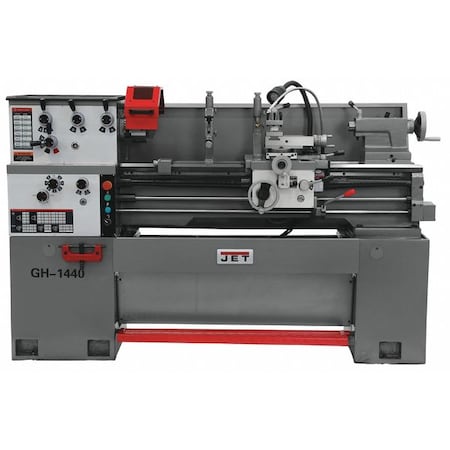

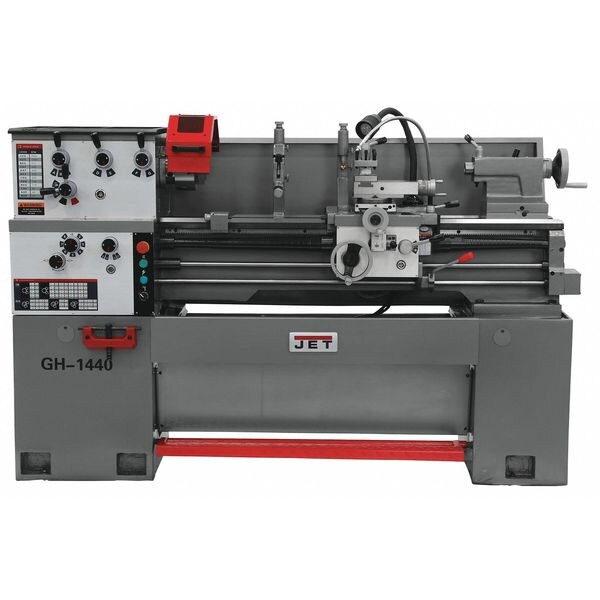

- Lathe
- Primary Application
- Metal Turning
- Motor HP
- 3
- Phase
- Single
- Voltage
- 230V AC
- Frequency
- 60 Hz
- Swing Over Bed (In.)
- 14
- Distance Between Centers
- 40 in
- Horsepower
- 3 hp
- Tailstock Travel (In.)
- 4-3/4
- Thread Range (In.)
- 4-112
- Spindle Speed (RPM)
- 40-1800
- Number of Spindle Speeds
- 12
- Spindle Taper
- MT-3
- Swing In Gap (In.)
- 20
- Carriage Travel (In.)
- 37-1/2
- Coolant Tank Capacity
- Not Rated
- Longitudinal Feed Rates
- 0.0012 - 0.0294
- Cross Feed Rates
- 40
- Number of Threads (In.)
- 40
- Tailstock Taper
- MT3
- Spindle Bore (In.)
- 1-1/2
- Hz
- 60
- Distance Between Centers (In.)
- 40
- Swing Over Cross Slide (In.)
- 8-1/5
- Cross Travel (In.)
- 6-3/8
- Thread Range (mm)
- 0.45-7.5
- Compound Travel (In.)
- 3-1/2
- Number of Threads (mm)
- 23
- Features
Not Keyed, Shafts are Utilizedd1-4 Spindle is Precision Ground for Accuracy and Supported by High Quality Tapered Roller Bearingsindependent Leadscrew and Feed Rodadjustable Gibs are Incorporated in the Carriage and Slidewayssafety On/Off Switchemergency Stop within Easy Reach of the Operatorelectronic Chuck Key Docking Station, V-Way Bed Design is Induction Hardened and Groundsplined
- Includes
- 12 in Faceplate (Strapped to Container), 6 in Three Jaw Chuck with Top Reversing Jaws (Mounted on Lathe), 8 in Four Jaw Chuck with Backplate (Strapped to Container), Backplate, Follow Rest (Mounted on Lathe), GH1440-TBCP Tool Box, Steady Rest (Mounted on Lathe)
- Swing In Gap
- 20 in
- Max. Spindle Speed
- 1,800 RPM
- Max. Metric Thread
- 7.5 mm
- Number of Metric Threads
- 23
- Spindle Bore
- 1 1/2 in
- Max. Cross Feed
- 0.0103 in
- Swing Over Cross Slide
- 8 1/5 in
- Application
- Metal Turning
- Spindle Nose Type
- D1-4 Camlock
- Min. Metric Thread
- 0.45 mm
- Swing Over Bed
- 14 in
- Sound Level
- 78 dB
- Number of Inch Threads
- 40
- Min. Spindle Speed
- 40 RPM
- Min. Cross Feed
- 0.0004 in
- Min. Threads per Inch
- 4
- Current
- 18 A
- Max. Threads per Inch
- 112
- Series
- GH-1440-1
- Threads per Inch - Maximum
- 112
- Metric Thread - Minimum
- 0.45 mm
- Manufacturer Warranty
- Limited
- Cross Feed - Minimum
- 0.0004 in/rev
- Maximum Cross Slide Travel
- 6 3/8 in
- Spindle Speed - Minimum
- 40 RPM
- Tailstock Spindle Travel
- 4 3/4 in
- Includes Stand
- Stand Included
- Spindle Nose Taper
- D1-4 Camlock
- Threads per Inch - Minimum
- 4
- Spindle Speed - Maximum
- 1,800 RPM
- Maximum Carriage Travel
- 37 1/2 in
- Longitudinal Feed - Minimum
- 0.0012 in/rev
- Longitudinal Feed - Maximum
- 0.0294 in/rev
- Maximum Compound Slide Travel
- 3 1/2 in
- Metric Thread - Maximum
- 7.5 mm
- Lathe Head Drive
- Gear Drive
- Swing Over Gap
- 20 in
- Cross Feed - Maximum
- 0.0103 in/rev
