This item is Discontinued.

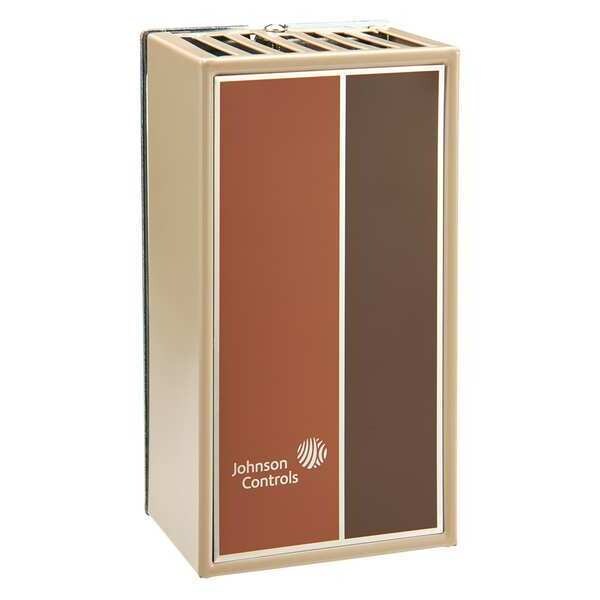

Johnson Controls Line Volt Mechanical Tstat, Open/Close on Rise, wall, 40 Degrees to 90 Degrees F, SPDT T25A-16C

This item is Discontinued.

Johnson Controls

Line Volt Mechanical Tstat, Open/Close on Rise, wall, 40 Degrees to 90 Degrees F, SPDT (Discontinued)

Mfr # T25A-16C
Zoro # G6959382
Country of Origin Mexico
Category Line Voltage Thermostats
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
T25A-16C
Zoro #
G6959382
UPC #
-
Country of Origin
Mexico

Dimensions

Width
2 25/32 in
Height
5 7/32 in
Depth
1 15/16 in
Overall Length
5-7/32"
Overall Depth
1 15/16 in
Overall Width
2 13/16 in
Overall Height
5 1/4 in
Fits Chest Size
Control of 2-Stages of Heating and Cooling, Automatic Changeover Control of Heating and Cooling on (3) Pipe and (4) Pipe Fan Coil Installations and Similar Applications

Details

Compatible System Type
Electric Cooling, Electric Heating
Display Type
Analog
Application
Heat or Cool
Switch Action
Open/Close on Rise
Differential
1 Degrees to 1.3 Degrees F
Switch Type
SPDT
Number of Cooling Stages
2
Number of Heating Stages
2
Thermostat Control Range
40 Degrees to 90 Degrees F
Temperature Control Range
40 Degrees to 90 Degrees F
Mounting Location
wall
Control Type
Concealed Dial
Voltage
24 to 277V AC
Mounting
Wall
Color
Beige
Item
Line Volt Mechanical Tstat
Number of Switches
2
Full Load Amps @ 240VAC
3 A
Control Range
40 Degrees to 90 Degrees F
Sensor Type
Temperature
Thermostat Switch Type
SPDT
Remote Sensing Bulb Included
No
Locked Rotor Amps @ 240V
18 A
Contact Rating Resistive @ 240V
8 A
Contact Rating Resistive @ 277V
7.2 A
Inductive Amps @ 120V
6 A
Standards
CSA, UL
Contact Rating Resistive @ 120V
10 A
Locked Rotor Amps @ 120V
36 A
Pilot Duty Contacts (VA)
125 VA
Resistive Amps @ 208VAC
9.2 A
Remote Sensing Capability
No
Full Load Amps @ 120VAC
15 A
Thermostat Programmable
No
Inductive Amps @ 240V
3 A
Thermostat Voltage
24 to 277V AC
Enclosure Type
Steel
Thermostat Heating/Cooling
Heating/Cooling
Thermostat Item
Line Voltage Mechanical Thermostat
Mounting Type
Vertical
Thermostat Type
Line Voltage
Number of Relay Inputs
0
Number of Relay Outputs
0
Agency Compliance
UL and CSA
For Use With
Suitable for Temperature Control in Heating, Cooling Applications
Includes
(1) Allen Wrench, (2) Machine Screws
Features
Control of 2-Stages of Heating and Cooling, Automatic Changeover Control of Heating and Cooling on (3) Pipe and (4) Pipe Fan Coil Installations and Similar Applications
Type
Heating/Cooling
Voltage Range
24 to 277VAC
Mounting Direction
Vertical
Changeover Type
Automatic
System Settings
Auto
Maximum Control Temperature
90 Degrees F
Resistive Amps @ 208V AC
9.2 A
Minimum Control Temperature
40 Degrees F
Number of Poles
1
Full Load Amps @ 120V AC
6 A
Full Load Amps @ 240V AC
3 A
Remote Control Functions
No Remote Control Included
Housing Color
White
Switch Positions
Cool-Heat-Off
Temperature Readout
No
Switch Type/Action
SPDT, Open/Close on Rise
Includes Positive Off
No
Enclosure Color
Beige
Temperature Differential
1.7 Degrees F
Stages
2H/2C
Housing Material
Steel
Pilot Duty Rating
125 VA
Contact Rating
120V AC, 208V AC, 240V AC, 277V AC
Differential Type
Fixed
Electrical Connection Type
Screw Terminals
Temperature Scale
Fahrenheit/Celsius
Compatible Product Type
Suitable for Temperature Control in Heating, Cooling Applications

Description

Line Volt Mechanical Tstat, Thermostat Switch Type SPDT, Thermostat Control Range 40 Degrees to 90 Degrees F, Thermostat Voltage 24 to 277V AC, Full Load Amps @ 120VAC 15 A, Full Load Amps @ 240VAC 3 A, Thermostat Programmable No, Remote Sensing Capability No, Thermostat Heating/Cooling Heating/Cooling, Remote Sensing Bulb Included No, Switch Action Open/Close on Rise, Number of Switches 2, Differential 1 Degrees to 1.3 Degrees F, Height 5 7/32 in, Width 2 25/32 in, Depth 1 15/16 in, Color Beige
