Johnson Controls

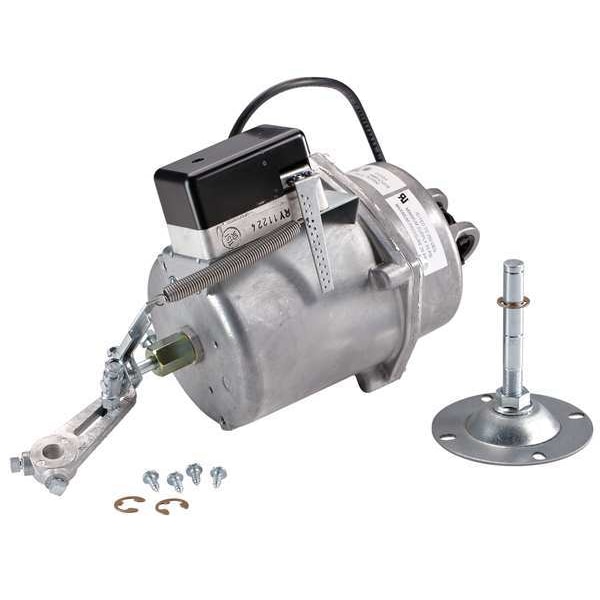

Pneumatic Actuator, 0-20 PSI

original price: $527.01
6% off
new price: $492.52
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Operating PSI Range 0 to 20
  • Max. Air Pressure 30 psi
  • Stroke 3 in
  • Nominal Spring Range 8 to 13 psi
  • Net Force Exerted @ 0 PSI 120 lb
See all product information

Product Information

Dimensions

Width 6 in
Height 6 in
Length 12 in
Overall Length 7 7/8 in
Overall Depth 15 7/16 in
Air Connection Size 1/8 in
Overall Width 6 5/16 in

Details

Item Pneumatic Damper Actuator
Operating PSI Range 0 to 20
Max. Air Pressure 30 psi
Stroke 3 in
Nominal Spring Range 8 to 13 psi
Net Force Exerted @ 0 PSI 120 lb
Includes Auxiliary Mounting Bracket
Net Force Exerted @ 18 PSI 105 lb
Application Dampers
Force at 0 psi 120 lbf
Control Pressure - Maximum 30 psi
Valve Action Normally Closed, Normally Open
Spring Range Minimum 8 psi
Diaphragm Material Synthetic Elastomer
Mounting Hardware Included Mounting Bracket
Operating Temperature - Maximum 150 Degrees F
Air Connection Type NPT
Includes Positioner Positioner Not Included
Spring Range Maximum 13 psi
Installation Orientation Versatile
Manufacturer Series D-3153
Specific Valve Action Spring Return Down
Actuator Type Linear
Fire/Smoke Application Not UL Recognized Components for Fire/Smoke Applications
Control Pressure - Minimum 20 psi
Operating Temperature - Minimum -20 Degrees F
Actuator Connection Ball Joint Connector

Description

Pneumatic Damper Actuator, Actuator Connection Ball Joint Connector, Actuator Type Linear, Air Connection Size 1/8 in, Air Connection Type NPT, Application Dampers, Control Pressure - Maximum 30 psi, Control Pressure - Minimum 20 psi, Diaphragm Material Synthetic Elastomer, Fire/Smoke Application Not UL Recognized Components for Fire/Smoke Applications, Force at 0 psi 120 lbf, Includes Positioner Positioner Not Included, Installation Orientation Versatile, Manufacturer Series D-3153
