This item is Discontinued.

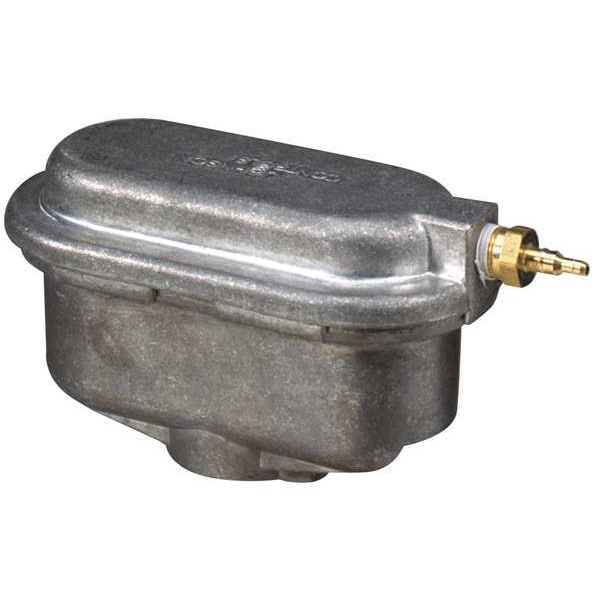

Johnson Controls Pneumatic Valve Actuator, 30 psi, 1/8 in V-3802-1

This item is Discontinued.

Johnson Controls

Pneumatic Valve Actuator, 30 psi, 1/8 in (Discontinued)

Mfr # V-3802-1
Zoro # G5077974
Country of Origin Mexico
Category Pneumatic Actuators
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
V-3802-1
Zoro #
G5077974
UPC #
-
Country of Origin
Mexico

Dimensions

Length
4 31/32 in
Width
1 5/8 in
Height
2 7/16 in
Overall Length
2 7/16 in
Overall Width
1 5/8 in
Overall Depth
2 7/16 in
Air Connection Size
1/8 in
Wire Rope Length
2 7/16 in

Details

Item
Pneumatic Valve Actuator
Operating PSI Range
0-30
Max. Air Pressure
30 psi
Stroke
3/4 in
Nominal Spring Range
3 to 13 psi
For Use With
VT Series Valves
Application
Control of Hot/Chilled Water
Spring Range Maximum
13 psi
Diaphragm Material
Synthetic Elastomer
Includes Mounting Kit
Valve Mounting Kit Not Included
Specific Valve Action
Spring Return Up
Manufacturer Series
V-3802
Effective Diaphragm Area
Not Available
Operating Temperature - Maximum
281 Degrees F
Control Pressure - Maximum
30 psi
Air Connection Type
Barbed Hose
Housing Material
Die Cast Aluminum
Spring Range Minimum
3 psi

Description

Pneumatic Valve Actuator, Air Connection Size 1/8 in, Air Connection Type Barbed Hose, Application Control of Hot/Chilled Water, Control Pressure - Maximum 30 psi, Diaphragm Material Synthetic Elastomer, Effective Diaphragm Area Not Available, Housing Material Die Cast Aluminum, Includes Mounting Kit Valve Mounting Kit Not Included, Manufacturer Series V-3802, Operating Temperature - Maximum 281 Degrees F, Overall Depth 2 7/16 in, Overall Length 2 7/16 in
