Specifications
Product Information
- MFR #
- V-4000-1
- Zoro #
- G6530991
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Air Connection Size
- 5/32 in, 1/4 in
- Overall Width
- 2 27/32 in
- Overall Length
- 3 9/32 in
- Wire Rope Length
- 3 9/32 in
Details
- Item

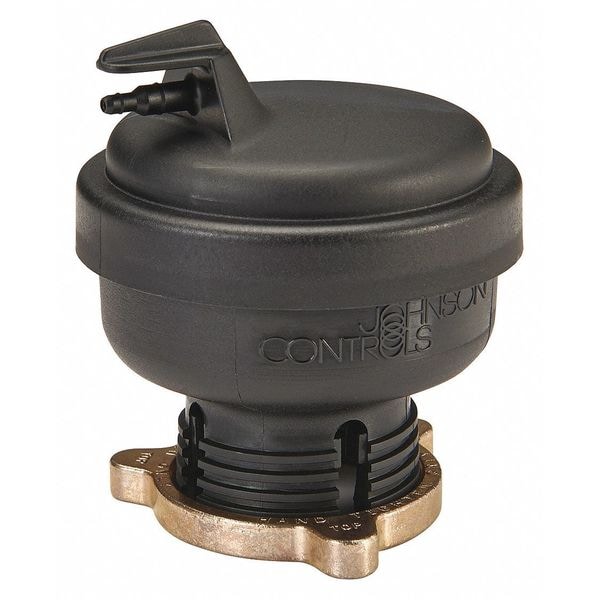

- Pneumatic Valve Actuator
- Spring Range Maximum
- 13 psi
- Operating Temperature - Maximum
- 150 Degrees F
- Includes Mounting Kit
- Valve Mounting Kit Not Included
- Effective Diaphragm Area
- 4 sq in
- Diaphragm Material
- Synthetic Rubber
- Air Connection Type
- Barbed Hose
- Control Pressure - Maximum
- 30 psi
- Spring Range Minimum
- 3 psi
- Housing Material
- Glass-Reinforced Nylon
- Yoke Material
- Glass-Reinforced Nylon
- Operating Temperature - Minimum
- -20 Degrees F
Description
Pneumatic Valve Actuator, Air Connection Size 5/32 in, 1/4 in, Air Connection Type Barbed Hose, Control Pressure - Maximum 30 psi, Diaphragm Material Synthetic Rubber, Effective Diaphragm Area 4 sq in, Housing Material Glass-Reinforced Nylon, Includes Mounting Kit Valve Mounting Kit Not Included, Operating Temperature - Maximum 150 Degrees F, Operating Temperature - Minimum -20 Degrees F, Overall Length 3 9/32 in
