This item is Discontinued.

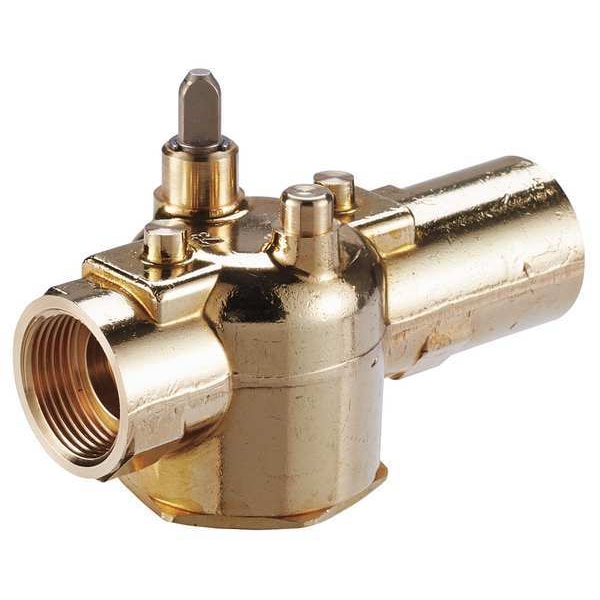

Johnson Controls Hydronic Globe Valve, Two-Way, 3/4 in JT2343

This item is Discontinued.

Johnson Controls

Hydronic Globe Valve, Two-Way, 3/4 in (Discontinued)

Mfr # JT2343
Zoro # G7158365
Country of Origin United States
Category Motorized Dampers Accessories
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JT2343
Zoro #
G7158365
UPC #
-
Country of Origin
United States

Dimensions

Width (In.)
2 3/4 in
Depth (In.)
1 3/4 in
Connection Type/Size (In.)
Flare 3/4
Height (In.)
1 7/8 in
Overall Width
1 7/8 in
Overall Length
2 3/4 in
Port Connection Size
3/4 in
Overall Depth
1 3/4 in
Wire Rope Length
2 3/4 in
Length
2 3/4 in

Details

Item
Hydronic Globe Valve
Type
2 Way, On/Off
For Use With
J Series Actuators
Max. Water Temp. (Deg. F)
200 Degrees F
Standard Pressure Closeoff
25
Coefficient of Volume
3.5
Includes
Valve Only
High Pressure Closeoff
30
Safe Working Water PSI
300 psi
Description/Special Features
Zone Valve, 2 Way, On/Off, Flare 3/4
Coefficient of Volume (Cv)
3.5
Gasket/Plug Material
Viton
Body Material
Brass
Operating Temperature - Maximum
200 Degrees F
Installation Orientation
Horizontal
Includes Actuator
Actuator Not Included
Fluid Temperature - Minimum
32 Degrees F
Application
Chilled/Hot Water Control, Fan Coils, Heat Exchangers, Saturated Steam Control
Close-Off Pressure
25 psi
Operating Temperature - Minimum
32 Degrees F
Body Pattern
Two-Way
Port Connection Type
Flanged
Fluid Temperature - Maximum
200 Degrees F
Spring Action
Spring Return
For Media
Water-Glycol Solution to 50%, Water
Stem Material
Brass
Actuator Control Signal
On/Off
Allowable Pressure - Maximum
300 psi

Description

Hydronic Globe Valve, Actuator Control Pressure - Maximum Not Applicable, Actuator Control Pressure - Minimum Not Applicable, Actuator Control Signal On/Off, Actuator Cover Material Not Applicable, Actuator Gears Material Not Applicable, Actuator Housing Material Not Applicable, Actuator Return Action Not Applicable, Actuator Type Not Applicable, Actuator Voltage Not Applicable, Allowable Pressure - Maximum 300 psi
