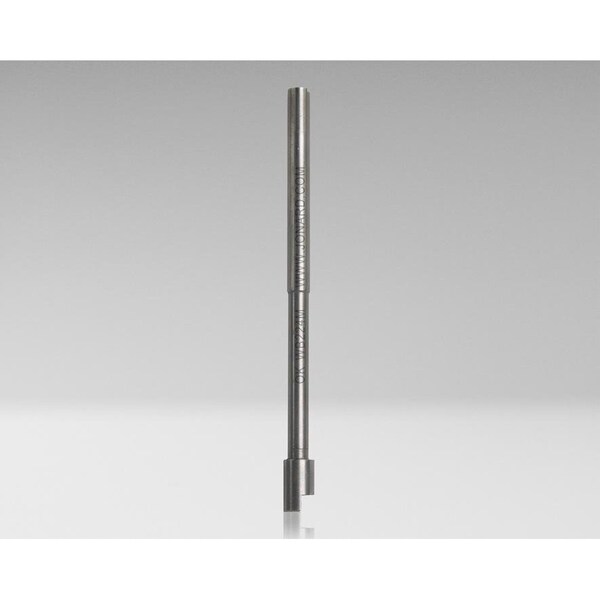

Jonard Tools Coiltite Bit WB224M

This item is Discontinued.

Jonard Tools

Coiltite Bit (Discontinued)

Mfr # WB224M
Zoro # G9473656
UPC # 811490013094
Country of Origin China
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WB224M
Zoro #
G9473656
UPC #
811490013094
Country of Origin
China
Type
Modified
Wire Gauge
22 to 24 AWG
Min. Terminal Diagonal (In.)
0.049 in
Max. Terminal Diagonal (In.)
0.074 in

Dimensions

Max. Insulation Dia. (In.)
0.05 in
Effective Radius (In.)
0.121 in
Terminal Hole Diameter
0.075 in
Wrap Post Size
0.045 in
Terminal Hole Depth
1.25 in

Description

Fully compatible with any make or model of wire wrapping tools, this 3" modified wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrapRecommended for use on 0.025" (0.63 mm) square terminals with 0.100" (2.54 mm) center-to-center of the pinsCompatible Wrap Sleeve Part #: P2224 and P2224INS
