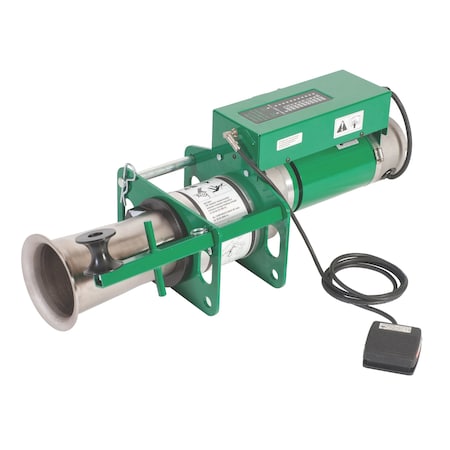

Cable Puller, 9986 lb, 120V, w/Force Gauge
Mfr # UT10-2S
Zoro # G5823824
product price:Â $8,961.99
/ea
Free Shipping & Returns
Key Features
Features
Can Shift from High Speed/Low Load Pulling to Low Speed/High Load Pulling with Foot Pedal Control Switch, No-Load High Speed of 16 ft/min for Loads Up to 4000 lb, No-Load Low Speed is 9 ft/min for Loads Up to 8000 lb
Includes
Force Gauge
Voltage
115V AC
Conduit
3 in
Use With
7/8 in dia (22.2mm) Double-Braided Polyester Composite Rated at 32,000 lb (142kN) min Breaking Strength
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- UT10-2S
- Zoro #
- G5823824
- UPC #
- 783310055280
- Country of Origin
- United States
Dimensions
- Maximum Compatible Conduit Size
- 3 in
Details
- Item
- Cable Puller
- Features
- Can Shift from High Speed/Low Load Pulling to Low Speed/High Load Pulling with Foot Pedal Control Switch, No-Load High Speed of 16 ft/min for Loads Up to 4000 lb, No-Load Low Speed is 9 ft/min for Loads Up to 8000 lb
- Includes
- Force Gauge
- Voltage
- 115V AC
- Conduit
- 3 in
- Use With
- 7/8 in dia (22.2mm) Double-Braided Polyester Composite Rated at 32,000 lb (142kN) min Breaking Strength
- Amps
- 20 A
- Motor
- Two Speed
- Function
- For Cable Pulling
- Pulling Force (Lb.)
- 9,986
- Cable Capacity
- 1200 ft with (2) 90 Degrees Bends, 3 x 1000 MCM Copper Cables, 4 x 500 MCM Copper Cables, 4 x 750 MCM Copper Cables, 750 ft with (4) 90 Degrees Bends, 800 ft with (3) 90 Degrees Bends
- Application
- Cable Pulling
- Maximum Continuous Pulling Force
- 6,500 lbf
- Minimum Pulling Speed at Maximum Pulling Force
- 7 fpm
- Tool Type
- Cable Puller
- Maximum Momentary Pulling Force
- 10,000 lbf
- No Load Pulling Speed
- 16 fpm
- Horsepower
- 1 1/2 hp
- Tool Weight
- 86 lb
- Current
- 20 A
Description
If you are looking for a reliable cable puller, the Greenlee UT10-2S is an excellent choice. The unit has a 9,986 lb pulling force at 120 V and 20 A. It comes with a built-in force gauge that measures up to 100 lbs of tension. This Greenlee cable puller features two speed high torque integral motor that provides high performance and durability. The Greenlee Cable Puller is the perfect tool for your next project or job.
