  11. Straight Blade Receptacle, TT-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

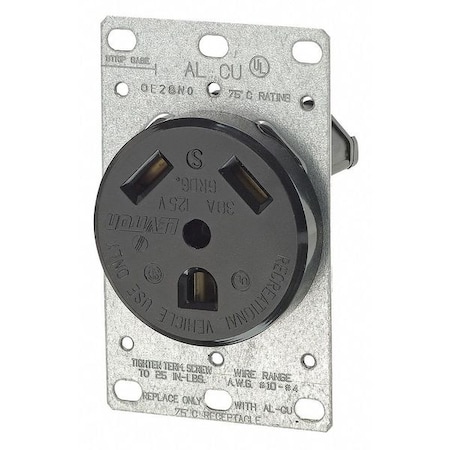

Leviton Straight Blade Receptacle, TT-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 7313-S00 - main

Straight Blade Receptacle, TT-30R, 30 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 7313-S00

  • Zoro # G804393220

product price: $13.29
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
TT-30R
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7313-S00
Zoro #
G804393220
UPC #
07847769529
Country of Origin
Mexico

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
TT-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, C22.2 No. 14, C22.2 No. 65, CSA C22.2 No. 42, File E13399, NEMA WD-6, UL 486E, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Single
Material
Thermoplastic (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
TT-30R
Wiring Method - Plugs and Receptacles
Side
HP
2 hp
Application Environment
Industrial
Sub-Category
Single Receptacles
Cover Type
No Cover
Polarized
Yes
UL 94 Flammability Rating
V-2
GFCI
No
Housing Material
Thermoplastic
Minimum Operating Temperature
-40 Degrees F
Maximum Operating Temperature
140 Degrees F
Number of Outlets
1
Market
Industrial
Grade
Federal Specification
NEMA Enclosure Rating
Not Rated
Contact Material
Copper Alloy
Connection Orientation
Straight
Horsepower Rating
2 hp
Includes Mounting Hardware
Yes
Terminal ID
Brass screw = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
Body Material
Polypropylene
ANSI
C73
Pole
2
Dielectric Voltage
Withstands 2000V per UL498
At Rated Voltage
2 HP
Flammability
Rated V-2 per UL 94
Strap Material
Galvanized Steel
Line Contacts
Brass Double-Wipe
Wire
3
Operating Temperature
-40°C to 60°C
CSA
22.2 No 42, C22.2 No.14, C22.2 No.65
Face Material
Polypropylene
Current Limiting
Full Rated Current
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Terminal Accom.
#4 AWG
UL
UL 498, UL 486E

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration TT-30R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single
