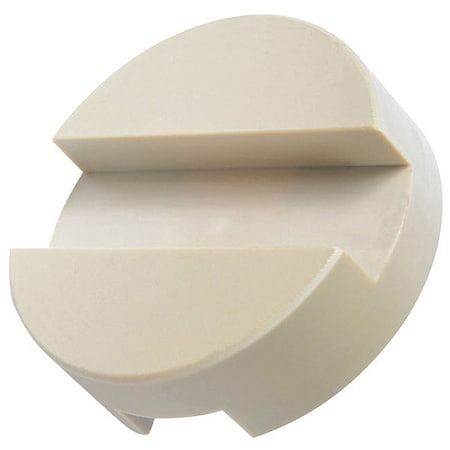

Coupling, Oldham Coupling Disc

Mfr # OD12/19-AT
Zoro # G1019243

Key Features

Rated Torque

20 in-lb

Max. RPM

4,500 RPM

Disc Type

Acetal

Style

Oldham Coupling Disc

Outside Dia. (In.)

0.750

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: OD12/19-AT
Zoro #: G1019243
UPC #: 634529059937
Country of Origin: United States

Dimensions

Outside Dia. (In.): 0.750
Outside Dia. (mm): 19.10
Fits Hub Outside Dia.: 0.750 in / 19.1mm
Coupling Size: OD19, OD12
Outside Diameter: 3/4 in
For Hub Diameter: 3/4 in

Details

Rated Torque: 20 in-lb
Max. RPM: 4,500 RPM
Disc Type: Acetal
Style: Oldham Coupling Disc
Item: Motion Control Coupling
Torsional Stiffness (Deg./In.-Lbs.): 0.043
Item - Oldham Coupling Discs: Oldham Coupling Disc
Max. Angular Misalignment: 0.5 Degrees
Max. Temp. Range (F): 150 Degrees F
Material: Acetal
Max. Axial Misalignment (In.): +/-0.004
Finish: Plain
Max. Parallel Misalignment (In.): 0.008 in
Material - Discs: Acetal
Torque (In.-Lbs.): 20.00
Axial Motion: 0.004 in
Weight: 0.002666 lb
Application: Applications With High Parallel Misalignment (Up to 10% of the Coupling OD)
Zero Backlash: Yes
Features: High Torsional Stiffness, Highly Customizable Coupling, Three-Piece Design, Zero-Backlash
Mechanical Fuse Break: Yes
Maximum Torque: 20 in-lb
System of Measurement: Inch
Parallel Misalignment: 0.008 in
Maximum Operating Temperature: 150 Degrees F
Torsional Stiffness: 23.3 in-lb/Deg
Minimum Operating Temperature: -10 Degrees F
Disc Finish: Plain
Disc Material: Acetal
Full Bearing Support Required: Yes
For Misalignment Type: Angular, Axial, Parallel
Maximum Speed: 4,500 RPM
Standards: Conflict Minerals Compliant, ISO 9001:2015, REACH Compliant, RoHS3 Compliant
Over-Standard Parallel Misalignment: 0.075 in
Color: Black
Angular Misalignment: 0.5 Degrees
Break Torque: 93 in-lb

Description

Motion Control Coupling, Angular Misalignment 0.5 Degrees , Axial Motion 0.004 in, Coupling Size OD19, OD12, Outside Diameter 3/4 in, Over-Standard Parallel Misalignment 0.075 in, Parallel Misalignment 0.008 in, Break Torque 93 in-lb, Disc Material Acetal, Maximum Torque 20 in-lb, Torsional Stiffness 23.3 in-lb/Deg, System of Measurement Inch, Maximum Speed 4,500 RPM, For Hub Diameter 3/4 in, Application Applications With High Parallel Misalignment (Up to 10 Percent of the Coupling OD)
